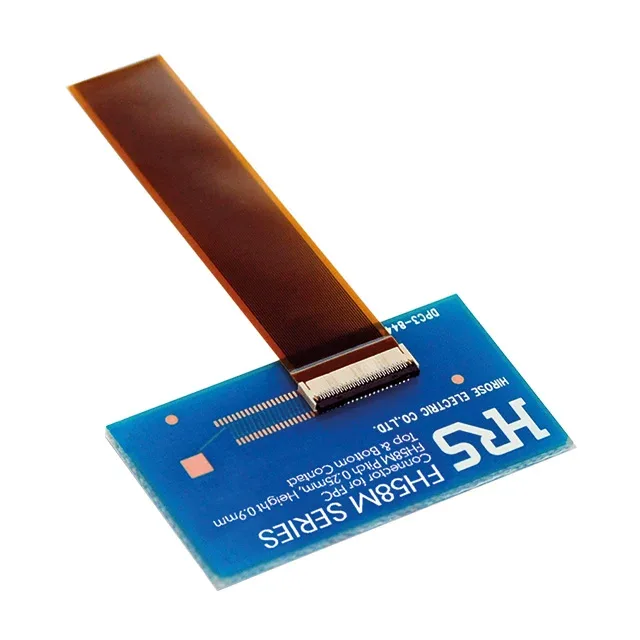

Hirose Electric Co Ltd FH58M Series

2 variants · Hirose Electric Co LtdAll FFC / FPC Cable Assemblies →

About the Hirose Electric Co Ltd FH58M Series

The Hirose Electric Co Ltd FH58M Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common actuator color of Black, actuator material of Polyamide (PA), Nylon, Halogen Free and cable end type of Notched. All listed Hirose Electric Co Ltd FH58M Series part numbers are active and orderable.

Shared specifications

Actuator color
Black
Actuator material
Polyamide (PA), Nylon, Halogen Free
Cable end type
Notched
Connector (Contact type)
Contacts, Top and Bottom
Contact finish
Gold
Contact finish thickness
1.25µin (0.03µm)
Contact material
Phosphor Bronze
Current rating
0.2A
Features
-
FFC, FCB thickness
0.20mm
Flat flex type
FPC
Height above board
0.035\" (0.88mm)

Request a quote on any Hirose Electric Co Ltd FH58M Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

About Hirose Electric Co Ltd FH58M Series

What buyers ask when they search Hirose Electric Co Ltd FH58M Series Connector Pitch Positions Plating Specifications.

Common questions

  • What is the Hirose Electric Co Ltd FH58M Series used for?
  • How do I select the correct part number within the Hirose Electric Co Ltd FH58M Series series?
  • What are the key technical specifications for the Hirose Electric Co Ltd FH58M Series?
  • Where can I find the Hirose Electric Co Ltd FH58M Series datasheet and order from authorized distributors?

All variants
