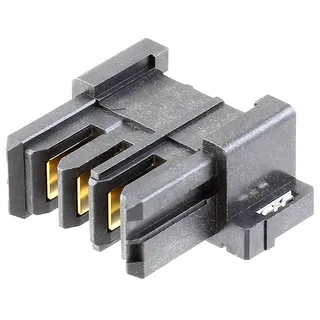

FX30B-2P-3.81DS
Hirose Electric Co Ltd
2Male Blade-55°C ~ 105°C
Ref. price$5.6800
Lead time on requestGet quote ›
Hirose Electric Co Ltd FX30B Series
26 variants · Hirose Electric Co Ltd
About the Hirose Electric Co Ltd FX30B Series
The Hirose Electric Co Ltd FX30B Series series groups 26 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish - mating of Gold, contact finish - post of Tin and contact finish thickness - mating of 3.90µin (0.099µm). Variants differ by connector type, current rating and fastening type, so you can match the exact connector type your application requires using the selection guide below. All listed Hirose Electric Co Ltd FX30B Series part numbers are active and orderable.
Select a variant by
- Connector type
- Header · Receptacle
- Current rating
- 15A · 16A
- Fastening type
- Latch Holder · Push-Pull
- Gender
- Female Blade Socket · Male Blade
- Insulation height
- 0.433\" (11.00mm) · 0.559\" (14.20mm) · 0.630\" (16.00mm) · 0.756\" (19.20mm) · 0.953\" (24.20mm)
- Mounting type
- Through Hole · Through Hole, Right Angle
- Operating temperature
- -55°C ~ 105°C · -55°C~105°C
- Pitch
- 0.150\" (3.81mm) · 0.300\" (7.62mm)
Shared specifications
- Contact finish - mating
- Gold
- Contact finish - post
- Tin
- Contact finish thickness - mating
- 3.90µin (0.099µm)
- Contact finish thickness - post
- 39.4µin (1.00µm)
- Contact length - post
- 0.130\" (3.30mm)
- Contact material
- Copper Alloy
- Contact shape
- Rectangular
- Features
- Board Guide, Board Lock
- Insulation color
- Black
- Insulation material
- Polyamide (PA), Nylon
- Material flammability rating
- UL94 V-0
- Package
- Tray
Variant comparison
| Parameter | FX30B-2P-3.81DS | FX30B-2P-3.81DSA25 | FX30B-2P-3.81DSA30 | FX30B-2P-7.62DS | FX30B-2P-7.62DSA20 | FX30B-2S-3.81DSA |
|---|---|---|---|---|---|---|
| Connector type | Header | Header | Header | Header | Header | Receptacle |
| Current rating | 16A | 16A | 16A | 16A | 16A | 16A |
| Fastening type | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Latch Holder |
| Gender | Male Blade | Male Blade | Male Blade | Male Blade | Male Blade | Female Blade Socket |
| Insulation height | 0.433\" (11.00mm) | 0.756\" (19.20mm) | 0.953\" (24.20mm) | 0.433\" (11.00mm) | 0.559\" (14.20mm) | 0.630\" (16.00mm) |
| Mounting type | Through Hole, Right Angle | Through Hole | Through Hole | Through Hole, Right Angle | Through Hole | Through Hole |
| Operating temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C~105°C |
| Pitch | 0.150\" (3.81mm) | 0.150\" (3.81mm) | 0.150\" (3.81mm) | 0.300\" (7.62mm) | 0.300\" (7.62mm) | 0.150\" (3.81mm) |
Request a quote on any Hirose Electric Co Ltd FX30B Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Hirose Electric Co Ltd FX30B Series variants differ?
- Hirose Electric Co Ltd FX30B Series part numbers differ by connector type, current rating, fastening type and gender. Use the selection guide above to pick by connector type.
- How many Hirose Electric Co Ltd FX30B Series part numbers are listed?
- 26 Hirose Electric Co Ltd FX30B Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Hirose Electric Co Ltd FX30B Series?
- Request a quote (RFQ) for any Hirose Electric Co Ltd FX30B Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
