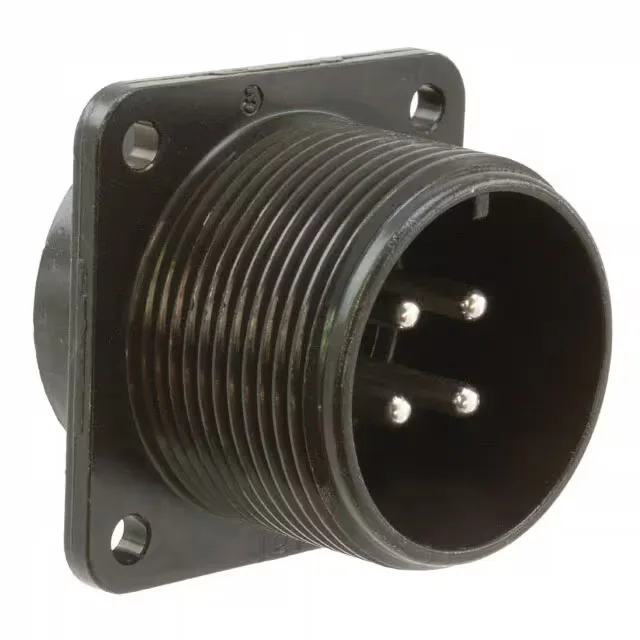

JL04V-2E18-10PE-B-R
JAE Electronics
BlackJL04VBulk
Ref. price$21.19
Lead time on requestGet quote
JAE Electronics JL04V Series
2 variants · JAE Electronics
About the JAE Electronics JL04V Series
The JAE Electronics JL04V Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common applications of Industrial, Medical, Telecommunications, Test Equipment & Measurement, cable opening of 1.063\" (27.00mm) and color of Black.
Shared specifications
- Applications
- Industrial, Medical, Telecommunications, Test Equipment & Measurement
- Cable opening
- 1.063\" (27.00mm)
- Color
- Black
- Connector type
- Receptacle, Male Pins
- Contact finish - mating
- Silver
- Contact material
- Copper Alloy
- Current rating
- 23A
- Fastening type
- Threaded
- Features
- Ground
- Insert material
- Silicon Rubber
- IP rating
- IP67 - Dust Tight, Waterproof
- Mounting
- Panel Mount
Request a quote on any JAE Electronics JL04V Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
About JAE Electronics JL04V Series
What buyers ask when they search JAE Electronics JL04V Series Connector Pitch Positions Plating Specifications.
Common questions
- What is the JAE Electronics JL04V Series used for?
- How do I select the correct part number within the JAE Electronics JL04V Series series?
- What are the key technical specifications for the JAE Electronics JL04V Series?
- Where can I find the JAE Electronics JL04V Series datasheet and order from authorized distributors?
