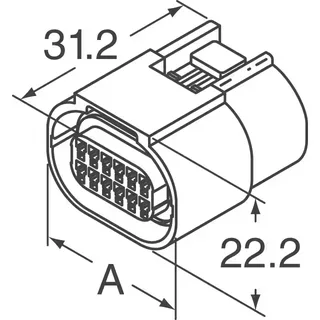

MX23A12SF1
JAE Electronics
12BulkWaterproof
Ref. price$6.06
Lead time on requestGet quote ›
JAE Electronics MX23 Series
9 variants · JAE Electronics
About the JAE Electronics MX23 Series
The JAE Electronics MX23 Series series groups 9 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by package, positions and connector type, so you can match the exact package your application requires using the selection guide below. All listed JAE Electronics MX23 Series part numbers are active and orderable.
Select a variant by
- Package
- Bag · Bulk · Tray
- Positions
- 12 · 18 · 26 · 34
- Connector type
- Header · Receptacle
- Fastening type
- Latch Holder · Latch Lock
- Features
- Board Guide · Waterproof
- Gender
- Female Socket · Male Pin
- Mounting type
- Free Hanging (In-Line) · Through Hole, Right Angle
Variant comparison
| Parameter | MX23A12SF1 | MX23A12XF1 | MX23A18NF1 | MX23A18SF1 | MX23A18XF1 | MX23A26NF1 |
|---|---|---|---|---|---|---|
| Package | Bulk | Bulk | Tray | Tray | Bag | Bulk |
| Positions | 12 | 12 | 18 | 18 | 18 | 26 |
| Connector type | Receptacle | — | Header | Receptacle | — | Header |
| Fastening type | Latch Lock | — | Latch Holder | Latch Lock | — | Latch Holder |
| Features | Waterproof | — | Board Guide | Waterproof | — | Board Guide |
| Gender | Female Socket | — | Male Pin | Female Socket | — | Male Pin |
| Mounting type | Free Hanging (In-Line) | — | Through Hole, Right Angle | Free Hanging (In-Line) | — | Through Hole, Right Angle |
Request a quote on any JAE Electronics MX23 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the JAE Electronics MX23 Series variants differ?
- JAE Electronics MX23 Series part numbers differ by package, positions, connector type and fastening type. Use the selection guide above to pick by package.
- How many JAE Electronics MX23 Series part numbers are listed?
- 9 JAE Electronics MX23 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for JAE Electronics MX23 Series?
- Request a quote (RFQ) for any JAE Electronics MX23 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
