JST A09Z Series
3 variants · JST
About the JST JST A09Z Series series
The JST JST A09Z Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common cable termination of IDC, color of Gray, Individual and contact finish of Tin. Variants differ by connector type and length, so you can match the exact connector type your application requires using the selection guide below. All listed JST A09Z Series part numbers are active and orderable.
Select a variant by
- Connector type
- Socket to Socket · Socket to Socket, Reversed
- Length
- 0.167' (50.80mm, 2.00\") · 0.500' (152.40mm, 6.00\")
Variant comparison
| Parameter | A09ZR09ZR28H152A | A09ZR09ZR28H51A | A09ZR09ZR28H51B |
|---|---|---|---|
| Connector type | Socket to Socket, Reversed | Socket to Socket, Reversed | Socket to Socket |
| Length | 0.500' (152.40mm, 6.00\") | 0.167' (50.80mm, 2.00\") | 0.167' (50.80mm, 2.00\") |
Shared specifications
- Cable termination
- IDC
- Color
- Gray, Individual
- Contact finish
- Tin
- Package
- Bulk
- Pitch - connector
- 0.059\" (1.50mm)
- Positions
- 9
- Rows
- 1
Request a quote on any JST A09Z Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the JST JST A09Z Series variants differ?
- JST A09Z Series part numbers differ by connector type and length. Use the selection guide above to pick by connector type.
- How many JST JST A09Z Series part numbers are listed?
- 3 JST JST A09Z Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for JST JST A09Z Series?
- Request a quote (RFQ) for any JST A09Z Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
All variants

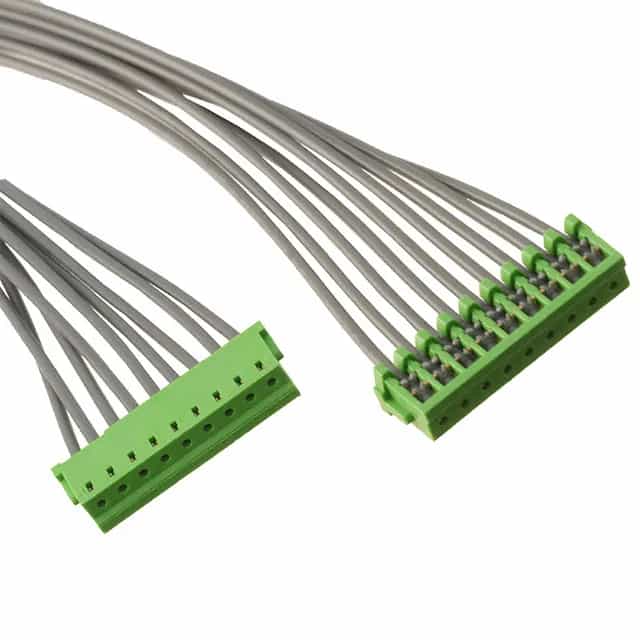

Color: Gray, Individual · Length: 0.500' (152.40mm, 6.00\") · Series: ZR · Package: Bulk · Connector type: Socket to Socket, Reversed · Contact finish: Tin · Rows: 1 · Cable termination: IDC · Pitch - connector: 0.059\" (1.50mm) · Positions: 9

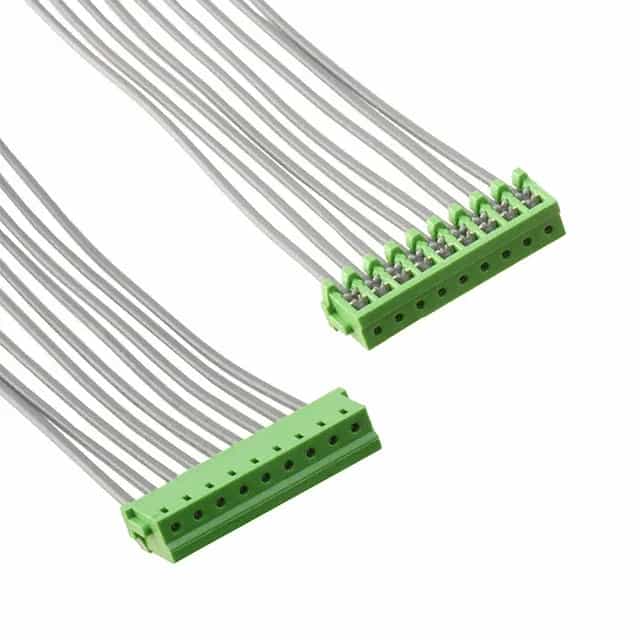

Color: Gray, Individual · Length: 0.167' (50.80mm, 2.00\") · Series: ZR · Package: Bulk · Connector type: Socket to Socket, Reversed · Contact finish: Tin · Rows: 1 · Cable termination: IDC · Pitch - connector: 0.059\" (1.50mm) · Positions: 9

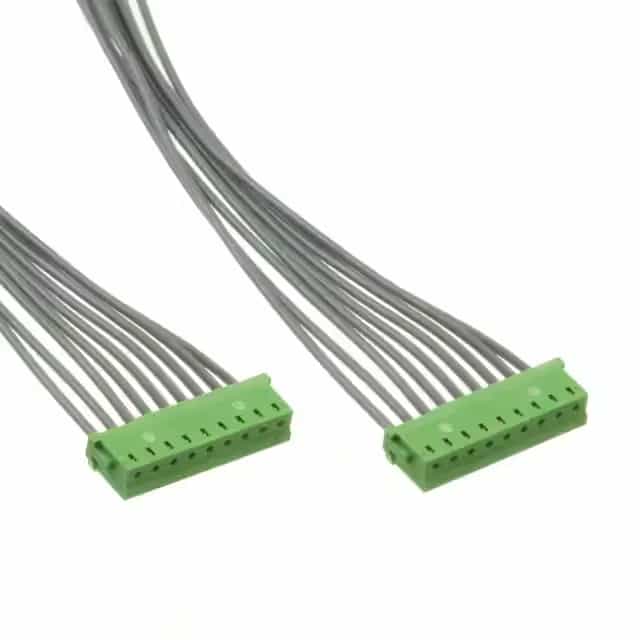

Color: Gray, Individual · Length: 0.167' (50.80mm, 2.00\") · Series: ZR · Package: Bulk · Connector type: Socket to Socket · Contact finish: Tin · Rows: 1 · Cable termination: IDC · Pitch - connector: 0.059\" (1.50mm) · Positions: 9
