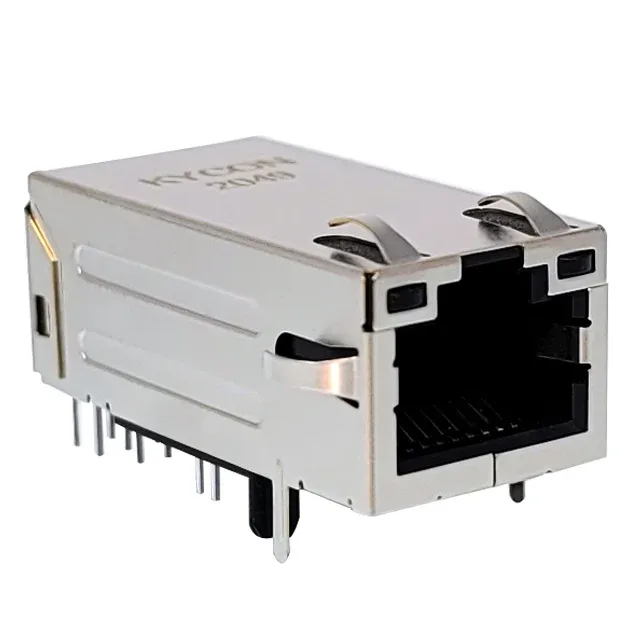

Kycon, Inc. G16LX-112S7-5G-G/Y-50
MPNG16LX-112S7-5G-G/Y-50
Active
CONN JACK 1PORT 5G BASE-T T/H
$16.8Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Connector type | RJ45 |
| Operating temperature | -40°C ~ 85°C |
| LED color | Green - Yellow |
| Shield material | Brass |
| Contact material | Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT) |
| Height above board | 0.536\" (13.61mm) |
| Package | Tray |
| Features | Board Guide |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | 5G Base-T, AutoMDIX, Power over Ethernet (PoE) |
| Tab direction | Up |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 50.0µin (1.27µm) |
| Number of cores per jack | 8 |
