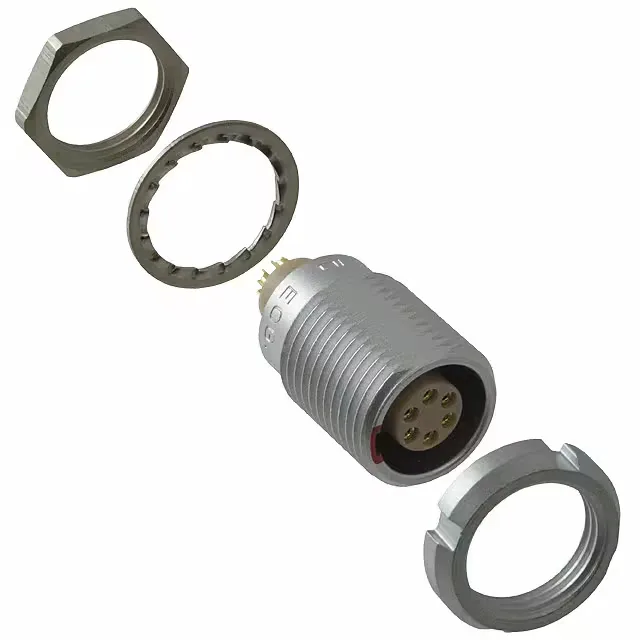

CONN RCPT FMALE 6P GOLD SLDR CUP
$38.81Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | 1B |
| Mounting type | Panel Mount |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Push-Pull |
| Current rating | 7A |
| Ingress protection | IP50 - Dust Protected |
| Mounting feature | Front and Rear Side Nut |
| Operating temperature | -55°C ~ 250°C |
| Color | Silver |
| Shell material | Brass |
| Insert material | Polyetheretherketone (PEEK) |
| Contact material | Bronze |
| Primary material | Metal |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Shielding | Shielded |
| Orientation | G |
| Termination | Solder Cup |
| Shell finish | Chrome |
| Positions | 6 |
| Shell size - insert | 306 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 59.0µin (1.50µm) |
Sourcing this connector
LEMO ECG.1B.306.CLL is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against LEMO and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
