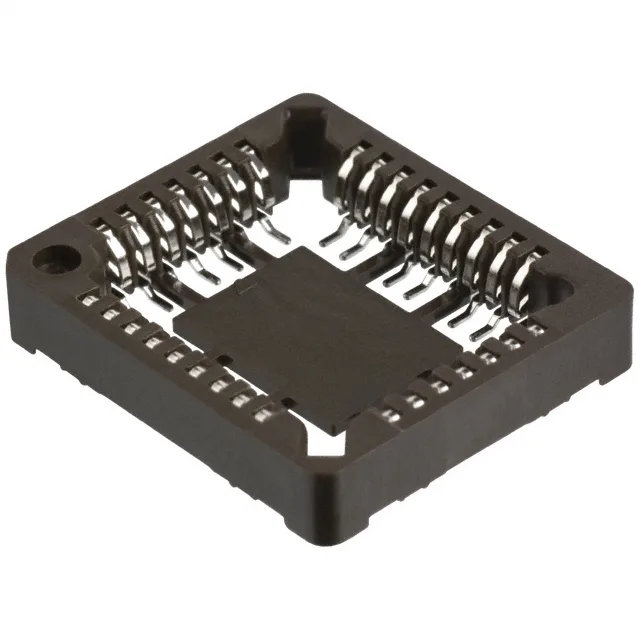

Mill-Max Manufacturing Corp. 5404 Series

1 variant · Mill-Max Manufacturing Corp.

About the Mill-Max Manufacturing Corp. 5404 Series

IC Source Direct is a China connector distributor, supplier and independent procurement agent for Mill-Max Manufacturing Corp. 5404 Series components, matching housing, contact and mating cycles across the Shenzhen interconnect channel. The Mill-Max Manufacturing Corp. 5404 Series series groups 1 related part number, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish - mating of Tin, contact finish - post of Tin and contact finish thickness - mating of 150.0µin (3.81µm). All listed Mill-Max Manufacturing Corp. 5404 Series part numbers are active and orderable.

Shared specifications

Contact finish - mating
Tin
Contact finish - post
Tin
Contact finish thickness - mating
150.0µin (3.81µm)
Contact finish thickness - post
150.0µin (3.81µm)
Contact material - mating
Copper Alloy
Contact material - post
Copper Alloy
Contact resistance
20mOhm
Features
Closed Frame
Housing material
Polyphenylene Sulfide (PPS)
Material flammability rating
UL94 V-0
Mounting
Surface Mount
Number of positions or pins
32 (2 x 7, 2 x 9)

Request a quote on any Mill-Max Manufacturing Corp. 5404 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
