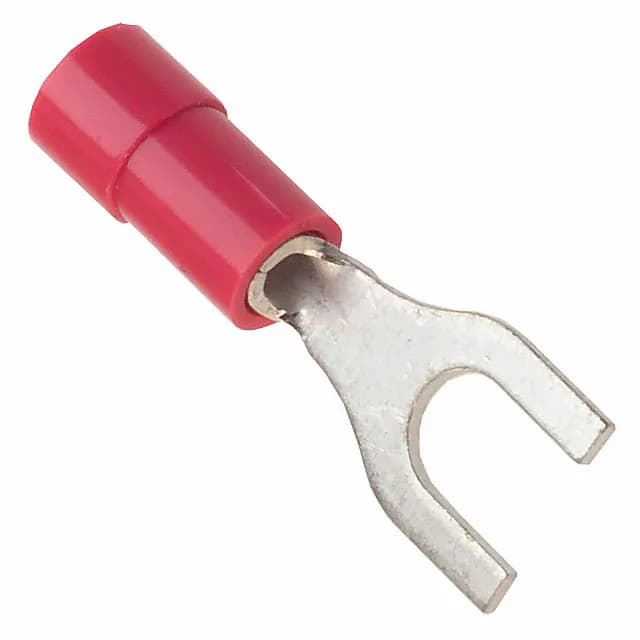

Molex 0191440003
MPN0191440003
Active
$0.3600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | InsulKrimp |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 18-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.316\" (8.03mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Bulk |
| Insulation | Insulated |
| Termination | Crimp |
| Manufacturer | Molex |
All specifications
| Parameter | Value |
|---|---|
| Stud (Tab size) | 8 Stud |
| Contact finish | Electro-Tin |
| Length - overall | 0.915\" (23.24mm) |
| Insulation diameter | 0.145\" (3.68mm) |
| Length - termination | 0.405\" (10.29mm) |
| Tongue inside opening | 0.173\" (4.39mm) |
| Length - ring center to termination | 0.303\" (7.70mm) |
