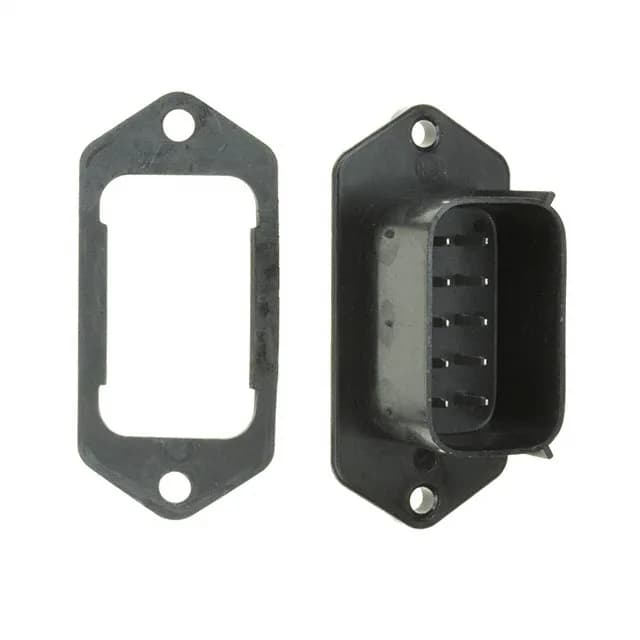

Molex 0194280014
MPN0194280014
Active
$6.3400Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MX150L 19428 |
| Type | Male Blade |
| Mounting | Panel Mount, Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| IP rating | IP67 - Dust Tight, Waterproof |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 1.094\" (27.80mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide, Mounting Flange |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.230\" (5.84mm) |
| Positions | 10 |
| Row spacing - mating | 0.236\" (6.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
