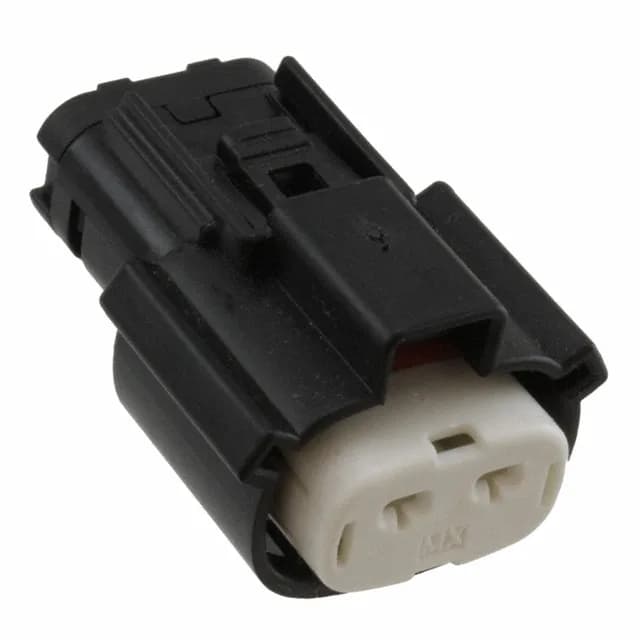

Molex MX150L 19432 series, 2-position single-row receptacle housing, 0.300" (7.62mm) pitch, crimp termination, free-hanging, black, tray.
| Parameter | Value |
|---|---|
| Series | MX150L 19432 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 120°C |
| Color | Black |
| Note | Contacts Not Included |
| Pitch | 0.300\" (7.62mm) |
| Package | Tray |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 2 |
The 0.300" (7.62mm) pitch is noticeably wider than the typical 2.54mm or 3.0mm spacing — that extra real estate gives you room for heavier-gauge wire and reduces the risk of flashover between adjacent circuits in high-vibration or wet environments.
No — the listing clearly states Contacts Not Included. You must order the female socket crimp terminals separately as a different part number.
This receptacle mates with the matching MX150L series plug header. The latch holder on this housing locks with the corresponding latch on the plug side for vibration-resistant retention.
