Board-to-wire header, 8 positions, 2.54 mm pitch
The 0307004081 is the 8-circuit member of Molex's H-DAC 64 30700 board-to-wire header line, with a shrouded 4-wall housing and latch holder for positive retention.

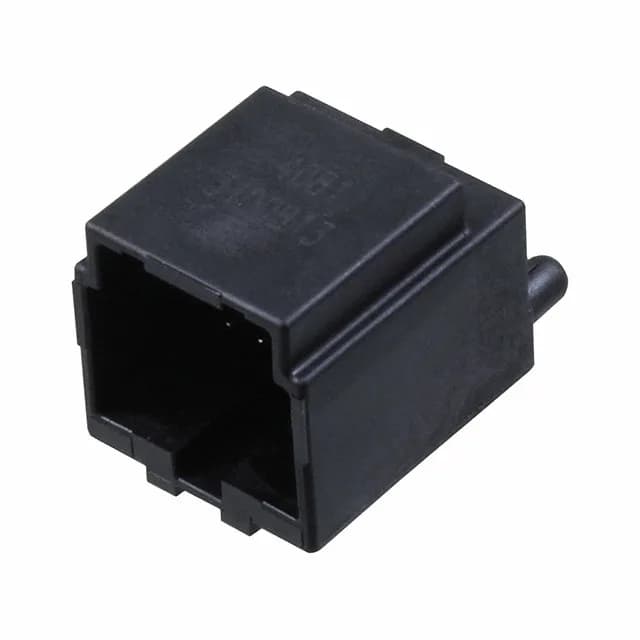

Molex 0307004081 H-DAC 64 Header, 8 Pos, 2.54mm
MPN0307004081
Active
Molex H-DAC 64 30700 header, order code 0307004081, 8 positions, dual row, 0.100" (2.54 mm) pitch, tin-plated mating contacts, through-hole, solder termination, shrouded 4-wall with latch holder.
$1.5200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | H-DAC 64 30700 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.854\" (21.69mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Mated stacking heights | 26.22mm |
| Style | Board to Cable/Wire |
| Features | Board Guide |
All specifications
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.145\" (3.68mm) |
| Overall contact length | 0.692\" (17.58mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.311\" (7.90mm) |
