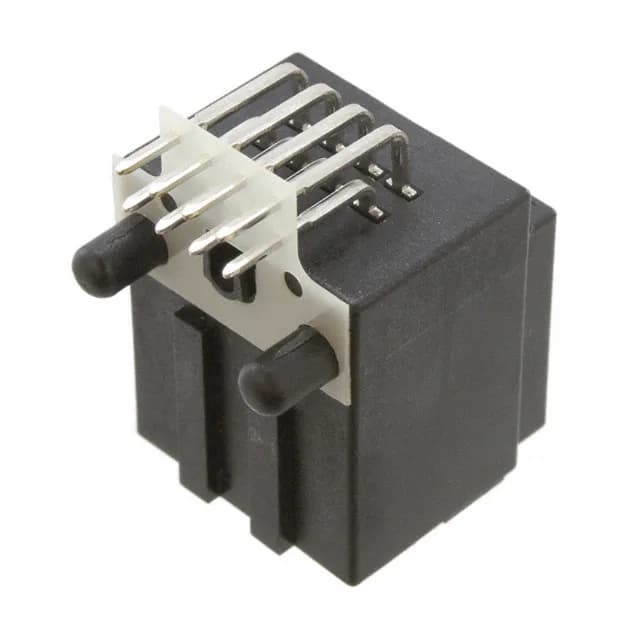

Molex 0307005081
MPN0307005081
Active
$4.0800Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | H-DAC 64 30700 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.734\" (18.64mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Style | Board to Cable/Wire |
| Features | Board Guide |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.131\" (3.33mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.311\" (7.90mm) |
