Molex 0334710208 — Wire-to-Board Connectors

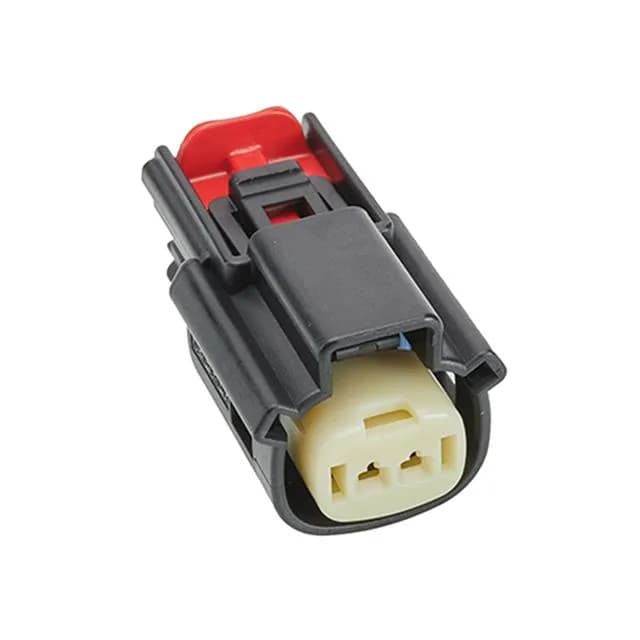

Molex MX150 0334710208 Receptacle, 2-Position, Sealed

MPN0334710208
Active

Molex MX150 33471 series, receptacle, 2 positions, 1 row, 0.138" (3.50mm) pitch, free hanging, crimp termination, latch holder, gray, sealed, contacts not included.

$2.7500Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0334710208 specifications
ParameterValue
SeriesMX150 33471
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 125°C
ColorGray
Insulation materialPolyester
NoteContacts Not Included
Pitch0.138\" (3.50mm)
FeaturesSealed
PackageBulk
Rows1
Contact terminationCrimp
Positions2

Product details

MX150 Sealed Receptacle — 2-Position Housing

The 0.138" (3.50mm) pitch and single-row layout keep the footprint compact while allowing 20-22 AWG power circuits through the matching crimp terminal.

The free-hanging (in-line) mounting style allows direct harness assembly without a panel cutout. Crimp termination with the correct tool (Molex hand crimper or semi-automatic press) ensures the terminal retention force meets the MX150 specification for sealed applications.

Sealed Construction and Compliance

The MX150 33471 series is a sealed connector family — the housing integrates interfacial and wire-entry seals when mated with the corresponding plug and properly crimped terminals. This makes the 0334710208 suitable for splash zones, pressure washdown areas, and outdoor harness runs. RoHS compliance is standard for current Molex production.

Frequently asked questions

What is the mating plug for Molex 0334710208?

The 0334710208 receptacle mates with the MX150 male header or plug housing, typically from the 033472 series. The latch holder on the receptacle engages the corresponding lock on the plug for a vibration-resistant connection.

What contacts do I need for 0334710208?

Contacts are not included with this housing. You need MX150 female socket crimp terminals, such as Molex 33001 or 33012 series, selected by wire gauge and plating (tin or gold).

Is 0334710208 a sealed connector?

Yes, the MX150 33471 series is a sealed connector family. When mated with the corresponding plug and properly crimped terminals, the housing provides environmental sealing against moisture and contaminants.
