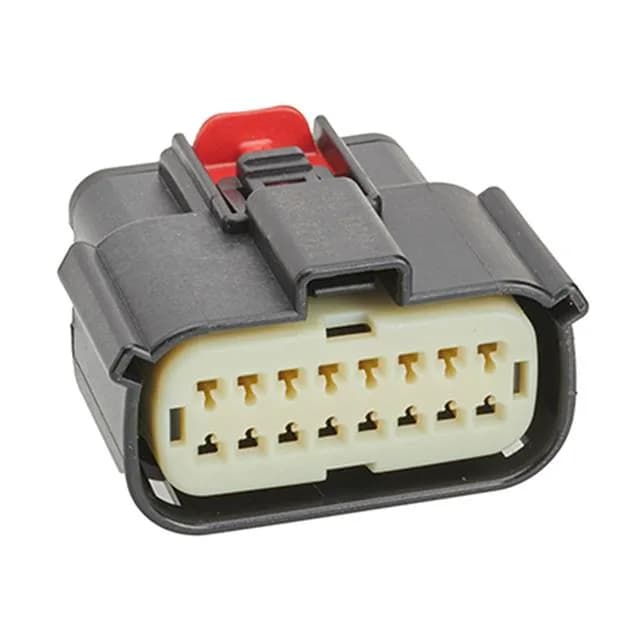

Molex MX150 33472 series receptacle housing, 0334721769, 16 positions, 2 rows, 0.138" (3.50mm) pitch, gray, free-hanging, crimp termination, latch holder fastening, CPA feature, contacts not included.
| Parameter | Value |
|---|---|
| Series | MX150 33472 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 150°C |
| Color | Gray |
| Insulation material | Polyamide (PA), Nylon, Glass Filled; Syndiotatic Polystyrene (SPS) |
| Note | Contacts Not Included |
| Pitch | 0.138\" (3.50mm) |
| Features | Connector Position Assurance (CPA) |
| Package | Bulk |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 16 |
The Molex MX150 0334721769 is a 16-circuit receptacle housing from the MX150 33472 series.
The CPA is a secondary lock that prevents the latch from being accidentally released; if you've ever had a connector back off on a production line or a vehicle, you know why this matters.
This is a housing only — contacts are not included. The note on the part states 'Contacts Not Included'. You must order the matching MX150 female socket crimp terminals separately for your wire gauge.
The pitch is 0.138" (3.50mm), which is the standard MX150 spacing. This matches the corresponding header of the same series.
This part is active and sourced to order.
