Board-to-wire header with latch and board guide
The 0346900201 is the 20-circuit member of Molex's Stac64 34690 header line, a shrouded board-to-wire header with a latch holder and an integral board guide.

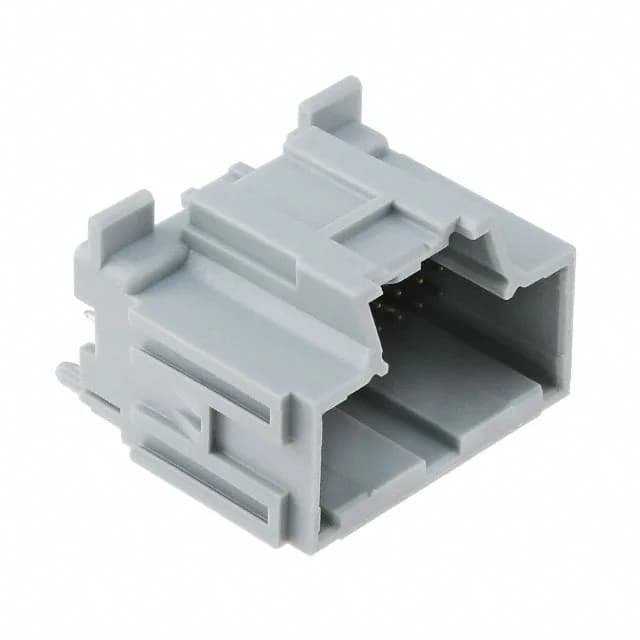

Molex 0346900201 Stac64 Header, 20-Pos 2.54mm
MPN0346900201
Active
Molex Stac64 34690 header, order code 0346900201, 20 positions, dual row, 0.100" (2.54mm) pitch, tin-plated mating contacts, through-hole, solder termination, shrouded - 4 wall, latch holder.
$3.0200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Stac64 34690 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Cartridge Brass |
| Insulation color | Gray |
| Insulation height | 0.886\" (22.50mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Style | Board to Cable/Wire |
| Features | Board Guide |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.117\" (2.97mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What compliance documentation does Molex provide for 0346900201?
Molex provides RoHS compliance information for the Stac64 series. Additional documentation such as REACH and UL may be available from the manufacturer.
