Shrouded header for board-to-wire automotive duty
The 0346916162 is the 16-circuit member of Molex's Stac64 34691 header line, a shrouded 4-wall board-to-wire header rated for the -40°C to 105°C automotive temperature range.

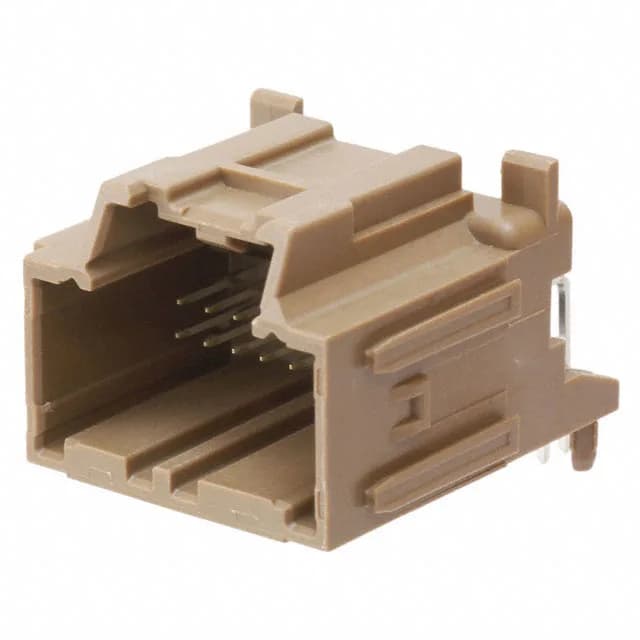

Molex Stac64 0346916162 Header, 16-Pos 2.54mm, RA
MPN0346916162
Active
Molex Stac64 34691 header, order code 0346916162, 16 positions, dual row, 0.100" (2.54mm) pitch, tin-plated mating contacts, through-hole right-angle, solder termination, shrouded 4-wall, latch holder.
$1.6654Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Stac64 34691 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Cartridge Brass |
| Insulation color | Brown |
| Insulation height | 0.868\" (22.05mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.119\" (3.02mm) |
| Contact finish - mating | Tin |
