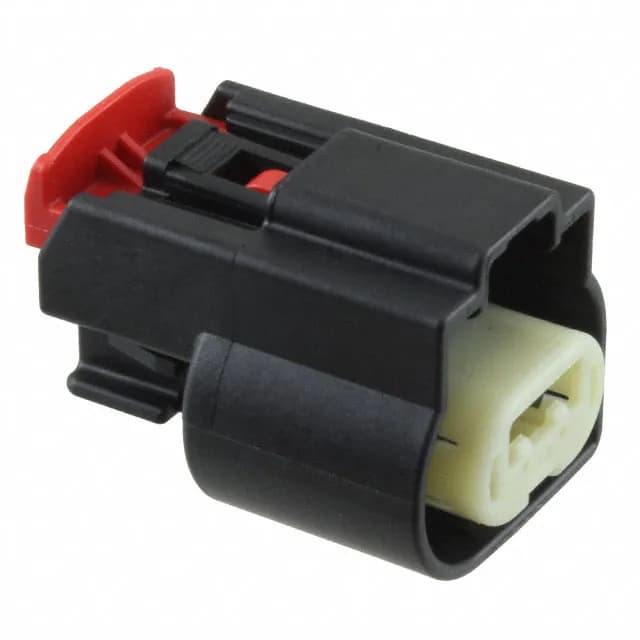

Sealed 2-Position Housing for Underhood Harnesses
Sealed construction and an integrated Connector Position Assurance (CPA) feature make this housing suited for applications where vibration, moisture, and thermal cycling are present, such as underhood engine harnesses, transmission connections, and body electronics.
Temperature Class and Sealing Validation
The sealed interface — combined with the CPA latch — means the housing maintains ingress protection when mated with the correct MX150 header and properly seated terminals. The CPA acts as a secondary lock, audibly confirming full engagement of the primary latch, which is a standard requirement for USCAR-class vibration testing.
Terminals and Mating Half
The 0347520204 is a receptacle housing only — terminals are not included. It accepts MX150 female socket crimp terminals (e.g., Molex 33001 series for 18-22 AWG or 33012 series for 14-16 AWG). The mating connector is a MX150 male header or plug housing with the same 2-position, single-row configuration and compatible latch geometry. For a complete sealed connection, use the matching header (e.g., Molex 034750 series) and ensure the correct wire seal and terminal are selected for the wire gauge.
