Molex 0347915140 — Wire-to-Board Connectors

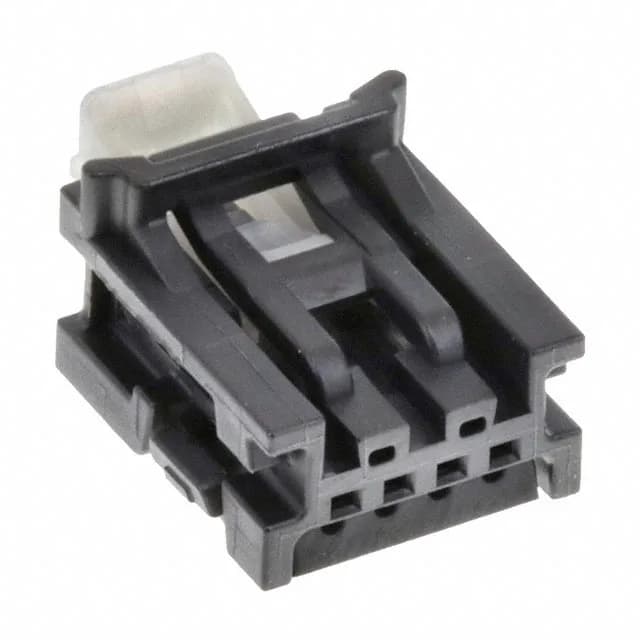

Molex Mini50 0347915140 Receptacle, 4-Position, 2.00mm Pitch

MPN0347915140
Active

Molex Mini50 34791 series, 4-position receptacle housing, 2.00mm pitch, 1-row, black PBT, free-hanging inline, latch holder with CPA, crimp termination, contacts not included.

$0.8900Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0347915140 specifications
ParameterValue
SeriesMini50 34791
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.079\" (2.00mm)
FeaturesConnector Position Assurance (CPA)
PackageBulk
Rows1
Contact terminationCrimp
Positions4

Product details

What this 4-position Mini50 receptacle does in the harness

The latch holder with Connector Position Assurance (CPA) means the secondary lock clicks in only when the housing is fully mated — a visual and tactile check that the connection won't back out under engine or machine vibration. This is a free-hanging (inline) receptacle, single-row, 4 positions.

Why the contacts-not-included note matters on the BOM

This is standard for Mini50 and similar USCAR-style connector families, where the terminal is selected by wire gauge (typically 20-22 AWG for the Mini50 system) and plating grade (gold for high-cycle or corrosive environments, tin for general duty). If the BOM lists only this order code, the harness build stops at the crimp station.

Frequently asked questions

Does the Molex 0347915140 include contacts?

No — the 0347915140 is a housing only. Female socket terminals must be ordered separately from the Mini50 34791 terminal series.
