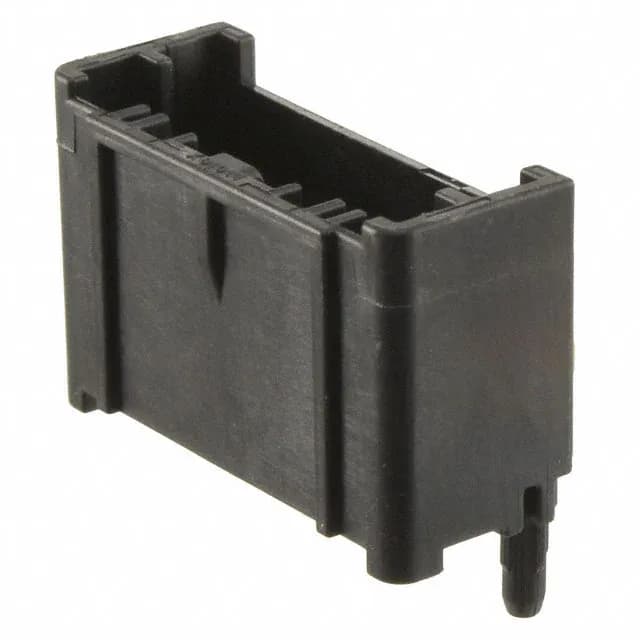

Molex Mini50 34792 series header, 8 positions, 2.00mm pitch, single row, through-hole, shrouded 4-wall, latch lock, tin-plated male blade contacts, UL94 V-0, black insulation, tray package.
| Parameter | Value |
|---|---|
| Series | Mini50 34792 |
| Type | Male Blade |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.575\" (14.60mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.051\" (1.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.218\" (5.55mm) |
The 0347920080: The through-hole termination and shrouded 4-wall design protect the male blade contacts during mating and handling. The tin-plated mating contacts are suited for moderate-cycle duty; the housing material is glass-filled syndiotactic polystyrene rated UL94 V-0.
ROHS3 Compliant. The base product number is 034792; the full 10-digit order code is 0347920080.
The mating connector is a Mini50 34792 series receptacle housing that accepts the corresponding crimp terminals.
The current rating is not listed in the available specifications.
