Molex 0348240205 — Wire-to-Board Connectors

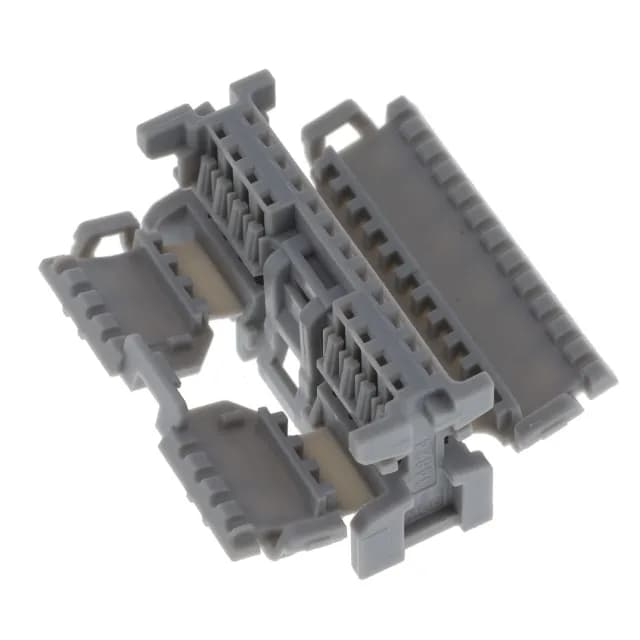

Molex 0348240205 Mini50 Receptacle, 20 Pos, 2.00mm Pitch

MPN0348240205
Active

Molex Mini50 34824 receptacle, 0348240205, 20 positions, 2 rows, 0.079" (2.00mm) pitch, free hanging, crimp termination, latch lock, gray, tray.

$0.6600Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0348240205 specifications
ParameterValue
SeriesMini50 34824
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-40°C ~ 105°C
ColorGray
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageTray
Rows2
Contact terminationCrimp
Positions20

Product details

Mini50 20-Position Receptacle — 2.00mm Pitch, Contacts Ordered Separately

The Molex 0348240205 is the 20-circuit receptacle housing from the Mini50 34824 series, a dual-row, 2.00mm-pitch wire-to-board interconnect designed for space-constrained automotive and industrial harnesses. Contacts are not included — they must be ordered separately as the matching crimp terminal.

What the 2.00mm Pitch Means for the Harness Layout

The mating header must also be 2.00mm pitch; there is no cross-compatibility with the larger 2.54mm or 3.00mm families.

Frequently asked questions

Does Molex 0348240205 come with contacts?

No. The 0348240205 is a receptacle housing only — contacts are not included. The female socket crimp terminals must be ordered separately.

What is the mating connector for Molex 0348240205?

The 0348240205 mates with a Mini50 2.00mm-pitch header of the same 20-circuit count. The specific mating header order code depends on the mounting orientation (vertical or right-angle) and board retention needed.
