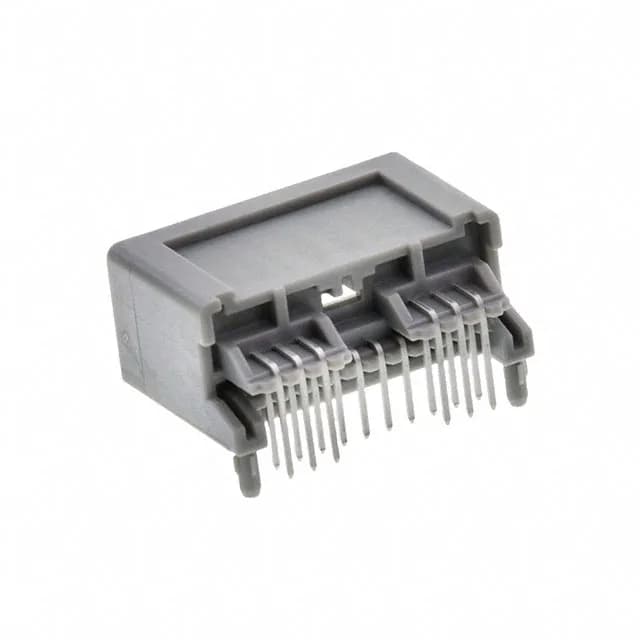

Molex Mini50 34826 header, order code 0348268161, 16 positions, dual row, 2.00 mm pitch, tin-plated mating contacts, through-hole right-angle, solder termination, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Mini50 34826 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation height | 0.460\" (11.68mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Features | Board Guide |
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 16 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.218\" (5.55mm) |
The 0348268161 is the 16-circuit member of the Molex Mini50 34826 shrouded header line, a board-to-wire connector for 2.00 mm pitch applications. Tin-plated mating contacts, a through-hole right-angle mounting, and a latch holder fastening system are standard.
