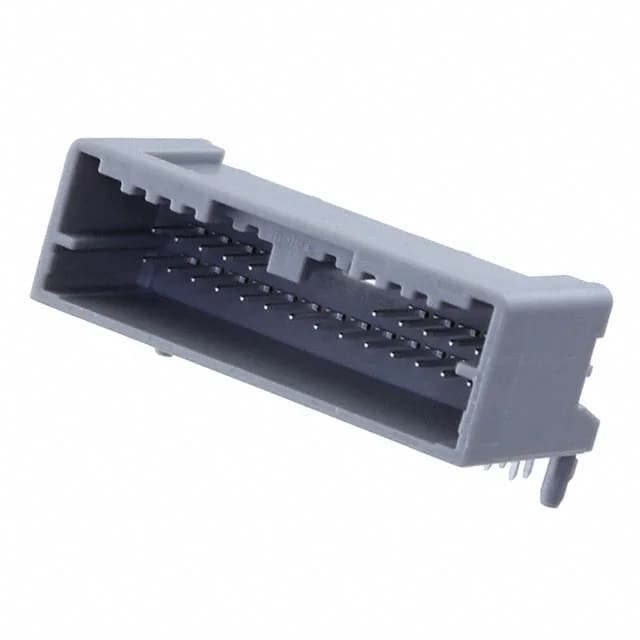

Molex 0348268241, Mini50 34826 series, board-to-cable/wire header, 24 positions, 2.00mm pitch, dual-row, through-hole right-angle, shrouded 4-wall with latch holder, tin-plated contacts, UL94 V-0 housing, automotive application.
| Parameter | Value |
|---|---|
| Series | Mini50 34826 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation height | 0.460\" (11.68mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 24 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.218\" (5.55mm) |
The 0348268241: At 24 positions loaded fully, this header mates with a 24-circuit receptacle from the same Mini50 series.
No official replacement or direct cross-reference is listed by the manufacturer. The base product number 034826 covers the Mini50 34826 family; verify the mating receptacle part number against your harness assembly before committing the BOM line.
Molex 0348268241 is available through our independent distribution channel. As an Active part, it is sourced per RFQ against the BOM quantity — no stock-holding claim is made on this page. Submit an RFQ for current pricing and lead time; availability is confirmed at quote time.
This header mates with a 24-circuit Mini50 receptacle housing from the same 34826 series. Confirm the exact receptacle part number from the series catalog to ensure terminal and wire-seal compatibility.
