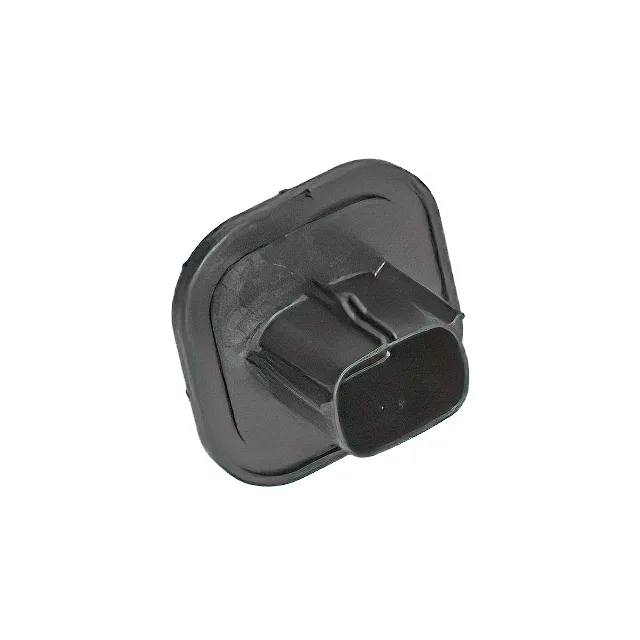

Molex 0348580506
MPN0348580506
Active
$8.8800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HSAutoLink II 34858 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 30VAC/DC |
| Current rating | 1.5A per Contact |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.870\" (22.10mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 12 |
| Row spacing - mating | 0.065\" (1.65mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.089\" (2.25mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 16.0µin (0.41µm) |
