2.00 mm pitch, 2-position automotive header
The 0349128020: It is a shrouded - 4 wall header with a latch holder, tin-plated mating contacts, and surface-mount right-angle termination, specified for automotive applications.

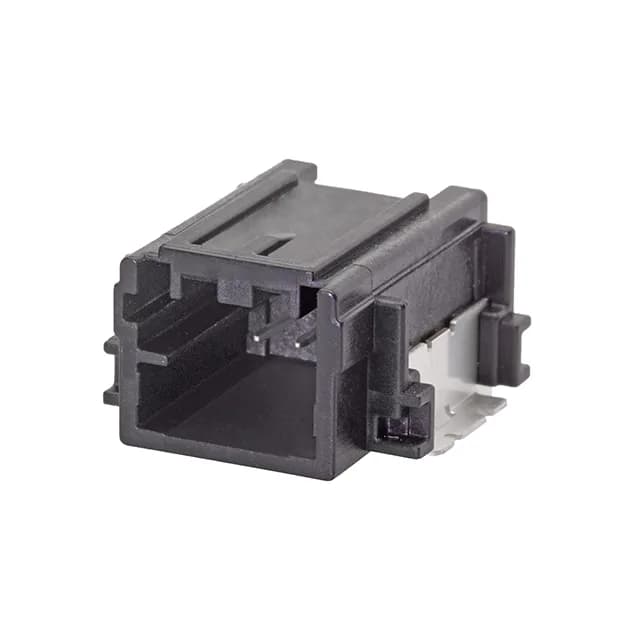

Molex Mini50 0349128020 Header, 2-Pos, 2.00mm, SMT RA
MPN0349128020
Active
Molex Mini50 34912 header, order code 0349128020, 2 positions, single row, 2.00 mm pitch, tin-plated mating contacts, surface-mount right-angle, solder termination, shrouded - 4 wall, latch holder.
$2.8300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini50 34912 |
| Type | Male Blade |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.372\" (9.44mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Style | Board to Cable/Wire |
| Features | Solder Retention |
| Package | Tape & Reel (TR) Cut Tape (CT) |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.218\" (5.55mm) |
Product details
Frequently asked questions
What is 0349128020's listed style and series?
The style is Board to Cable/Wire and the series is Mini50 34912.
