Board-to-wire header with latch lock and shrouding

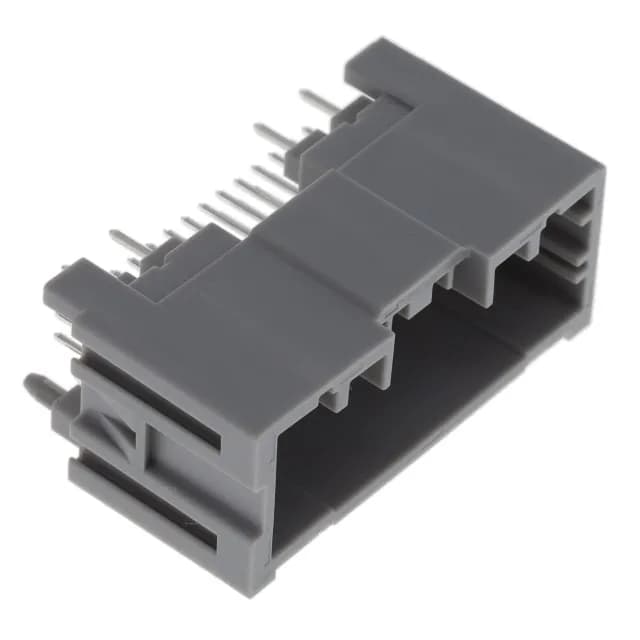

The 0349580341 is the 34-position, 3-row member of Molex's Mini50 34958 header line, designed for Board to Cable/Wire style connections. It mounts through-hole with solder termination, carries tin-plated mating contacts, and uses a latch lock fastening type for secure engagement.
Shrouding and latch lock for vibration environments
The shrouded 4-wall design and latch lock reduce the risk of mis-mating and back-out in automotive applications where vibration is present. Insulation height is 0.697" (17.70 mm), and the housing uses glass-filled syndiotactic polystyrene (SPS) for dimensional stability under thermal cycling.
