Molex 0349590383 — Connector Housings

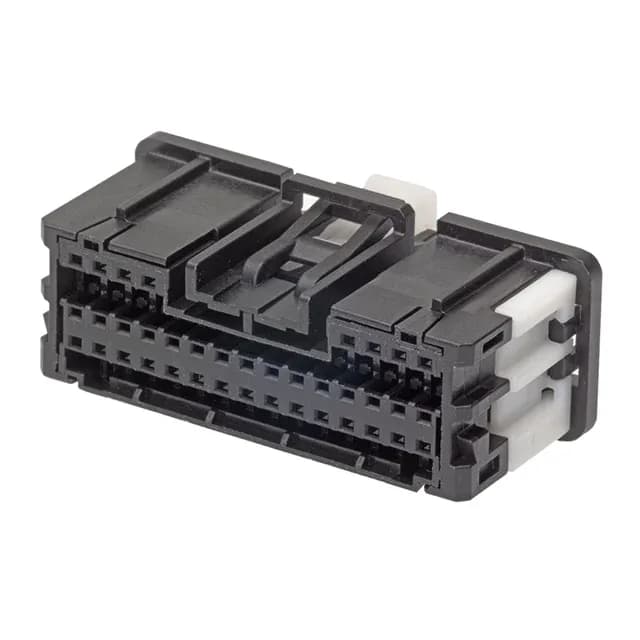

Molex Mini50 0349590383 Receptacle, 38 Pos, 2.00 mm

MPN0349590383
Active

Molex Mini50 34959 series receptacle housing, 38 positions, 3 rows, 2.00 mm pitch, free-hanging (in-line), latch lock with CPA, crimp termination, black PA66, contacts not included.

$2.2500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMini50 34959
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0349590383 specifications
ParameterValue
SeriesMini50 34959
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageBag
FeaturesConnector Position Assurance (CPA)
Rows3
Contact terminationCrimp
Positions38

Product details

The Molex Mini50 0349590383 is a 38-position receptacle housing from the 34959 series, laid out in three rows on a 2.00 mm pitch. That pitch is tight enough to save board real estate in a dense harness but still leaves room for 20-22 AWG wire routing in the cavity. The 38 circuits match a 38-way header — verify your BOM line count against this number before committing the line item. The latch lock with Connector Position Assurance (CPA) gives a positive secondary lock that resists vibration-induced separation, which is the whole point of the Mini50 family in automotive and industrial harnesses.

The 0349590383 mates with a Mini50 34959 series header of the same 38-position, 3-row, 2.00 mm pitch layout. The header will have the male pin terminals; this housing carries the female sockets. For the contacts themselves, you need the matching Molex Mini50 female socket crimp terminal — the housing does not include them, and the listing note makes that explicit. Standard Mini50 terminals accept 20-22 AWG wire; use the manufacturer's crimp tool and inspection gauge to hit the specified pull-force.

It is ROHS3 compliant.

Frequently asked questions

What is the mating connector for Molex 0349590383?

The mating half is a Mini50 34959 series header with 38 positions in a 3-row, 2.00 mm pitch layout. The header carries male pins; this receptacle houses female sockets.
