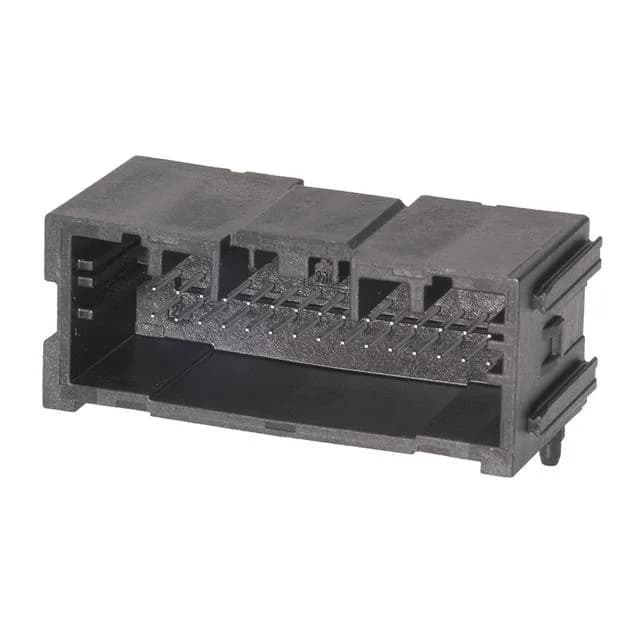

Molex Mini50 34961 header, order code 0349610387, 38 positions, 3 rows, 2.00 mm pitch, 14 VDC, tin-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Mini50 34961 |
| Type | Male Blade; Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Latch Holder |
| Voltage rating | 14VDC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation height | 0.654\" (16.61mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 HB |
| Style | Board to Cable/Wire |
| Features | Board Guide |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular, Square |
| Rows | 3 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 38 |
| Contact finish - post | Tin |
| Contact length - post | 0.108\" (2.75mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.215\" (5.45mm) |
The 0349610387 is the 38-circuit member of Molex's Mini50 34961 series board-to-cable header line, with 3 rows at 2.00 mm pitch. Tin-plated brass male contacts rated 14 VDC; through-hole right-angle solder termination with full 4-wall shrouding and a board guide.
The 4-wall shrouding with latch holder protects the mating interface; the board guide aids alignment during assembly.
The connector is classified as a Board to Cable/Wire header.
It is part of the Mini50 34961 series.
