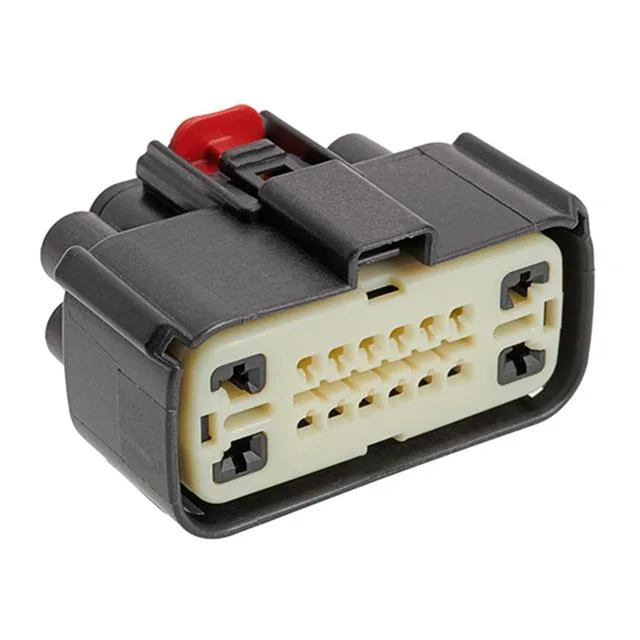

16-Circuit Sealed Receptacle for Harsh Environments
The Molex MX150 34985 0349852121 is a 16-circuit, dual-row receptacle housing from the MX150 34985 series, designed for sealed wire-to-wire or wire-to-board interconnects in environments where moisture, dust, and vibration are present.
Sealed Construction and Field Fit
The sealed housing incorporates interfacial and wire seals — when mated with the corresponding MX150 plug and properly crimped terminals, the assembly meets the IP ratings typical of the MX150 family. The housing material — a blend of glass-filled nylon (PA) and syndiotactic polystyrene (SPS) — holds dimensional stability across that swing, so the terminal retention doesn't loosen when the engine bay cycles from freezing to hot soak.
Mating Half and Harness Planning
This receptacle mates with the MX150 34985 series plug header (e.g., 0349851161 or similar 16-circuit plug). For a full harness, order the receptacle housing, the plug housing, and the crimp terminals (female sockets for this side, male pins for the plug) as separate line items.
