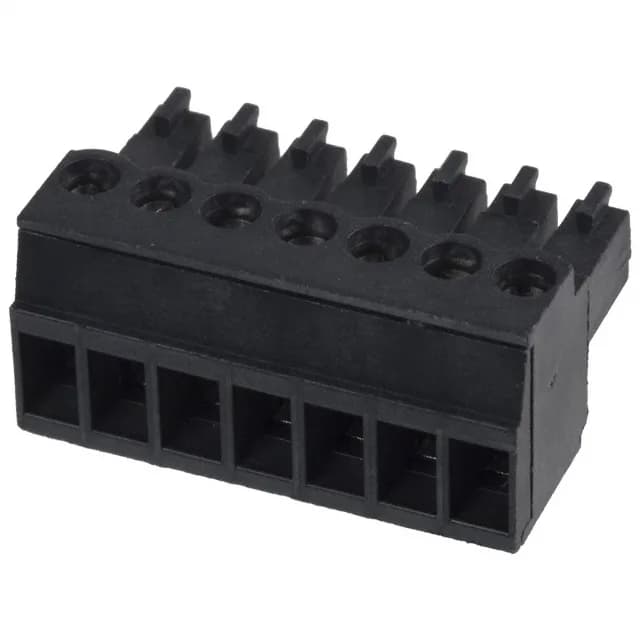

Molex 0393510007
MPN0393510007
Obsolete
$3.0500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle 39351 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 16-24 AWG |
| Operating temperature | 140°C |
| Color | Black |
| Contact material | Beryllium Copper |
| Housing material | Polyamide (PA46), Nylon 4/6 |
| Insulation height | 0.444\" (11.28mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Screw size | M2 |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 7 |
| Positions per level | 7 |
| Contact mating finish | Tin |
