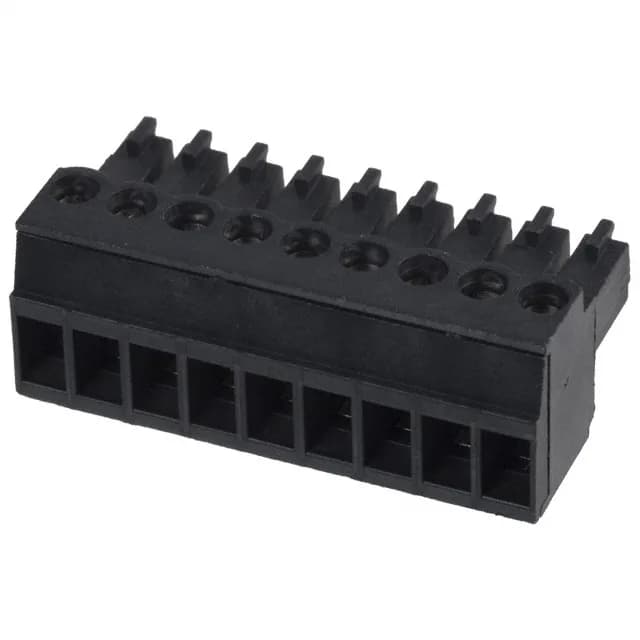

Molex Eurostyle 39351 plug, order code 0393510009, 9 positions, single level, 0.138" (3.50mm) pitch, 10 A, 300 V, tin-plated beryllium copper contacts, free hanging (in-line), screw - rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle 39351 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 16-24 AWG |
| Operating temperature | 140°C |
| Color | Black |
| Contact material | Beryllium Copper |
| Housing material | Polyamide (PA46), Nylon 4/6 |
| Insulation height | 0.444\" (11.28mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Screw size | M2 |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 9 |
| Positions per level | 9 |
| Contact mating finish | Tin |
The 0393510009 is the 9-position member of Molex's Eurostyle 39351 plug line, a single-level plug with rising cage clamp termination for 16-24 AWG wire. Rated 10 A at 300 V, it uses tin-plated beryllium copper contacts and a polyamide 4/6 housing rated to 140°C. The plug wire entry is 180°.
The 0393510009 is classified Obsolete by Molex. Sourcing is limited to surplus channels; quantities are confirmed per RFQ.
No pin-compatible alternative is documented in the Eurostyle 39351 series. The 0393510009 is the only 9-position single-level plug in this series. A board redesign may be required for a functional replacement.
