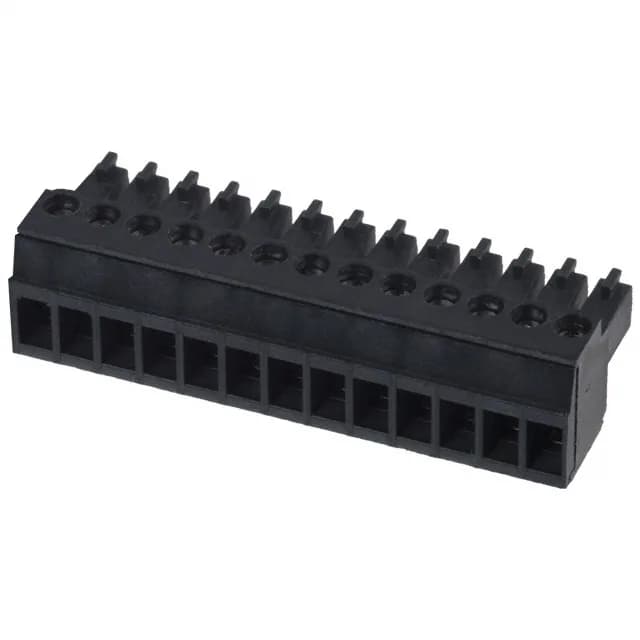

Molex Eurostyle 39351 plug, order code 0393510013, 13 positions, single level, 0.138" (3.50mm) pitch, 10 A, 300 V, tin-plated beryllium copper contacts, free hanging in-line, screw rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle 39351 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 16-24 AWG |
| Operating temperature | 140°C |
| Color | Black |
| Contact material | Beryllium Copper |
| Housing material | Polyamide (PA46), Nylon 4/6 |
| Insulation height | 0.444\" (11.28mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Screw size | M2 |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 13 |
| Positions per level | 13 |
| Contact mating finish | Tin |
The 0393510013 is the 13-circuit member of Molex's Eurostyle 39351 plug line, a free-hanging in-line female socket with screw rising cage clamp termination. It carries tin-plated beryllium copper contacts rated 10 A at 300 V, accepts 16-24 AWG wire, and uses an M2 screw for the clamp.
The screw rising cage clamp accepts 16-24 AWG wire.
