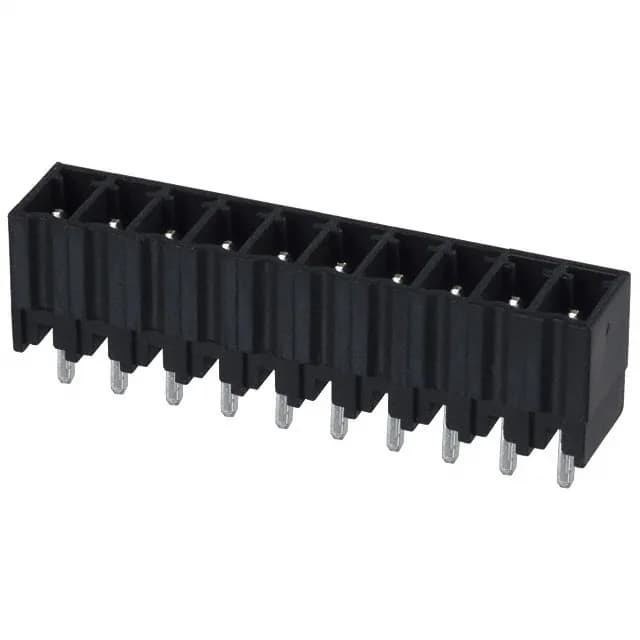

Molex Eurostyle 39353 header, order code 0393530010, 10 positions, single level, 3.50 mm pitch, 10 A, 300 V, tin-plated mating contacts, through-hole vertical, solder termination.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Eurostyle 39353 |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Operating temperature | 140°C |
| Color | Black |
| Contact material | Brass |
| Housing material | Polyamide (PA46), Nylon 4/6 |
| Insulation height | 0.360\" (9.14mm) |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.134\" (3.40mm) |
| Positions | 10 |
| Positions per level | 10 |
| Contact mating finish | Tin |
The 0393530010 is the 10-position member of Molex's Eurostyle 39353 shrouded header line, a through-hole vertical design with a single level of pins at 3.50 mm pitch. Rated 10 A at 300 V with tin-plated mating contacts, the header suits power distribution within an enclosure where the 3.50 mm pitch provides adequate creepage for the 300 V working voltage.
Molex lists the 0393530010 as Obsolete.
The 0393530010 is available through independent surplus channels. Submit an RFQ for current availability and lot-specific pricing.
