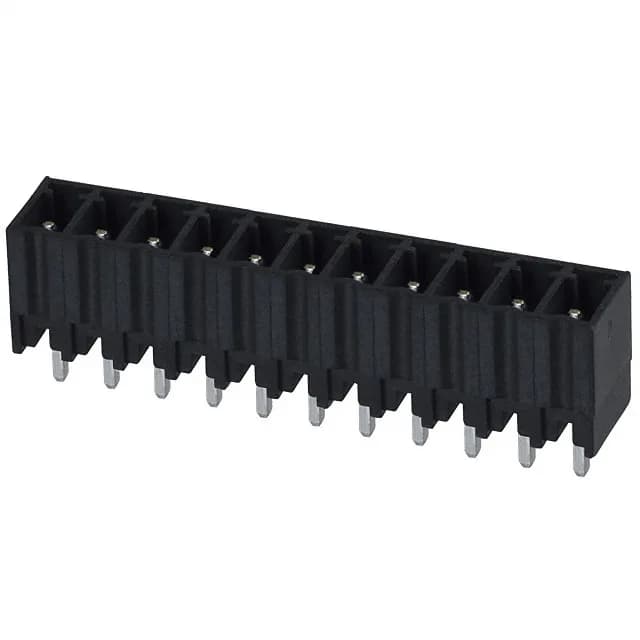

Molex 0393530011 Header 3.50mm 11-Position
MPN0393530011
Obsolete
Molex Eurostyle 39353 header, 11-position single-level vertical through-hole, 3.50mm pitch, tin-plated brass contacts rated 10 A at 300 V per UL, black PA46/Nylon housing, 0.360 inch insulation height, solder termination, bulk package.
$1.6196Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Eurostyle 39353 |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Operating temperature | 140°C |
| Color | Black |
| Contact material | Brass |
| Housing material | Polyamide (PA46), Nylon 4/6 |
| Insulation height | 0.360\" (9.14mm) |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.134\" (3.40mm) |
| Positions | 11 |
| Positions per level | 11 |
| Contact mating finish | Tin |
Frequently asked questions
Where can I buy the 0393530011?
The part is sourced to order against an RFQ through independent distribution — availability and current pricing are confirmed at quote time. No live stock holding or immediacy commitment is stated.
What type of connector is the 0393530011?
It is a shrouded male-pin header, vertical through-hole, single-level, 11 circuits, in the Molex Eurostyle 39353 series.
