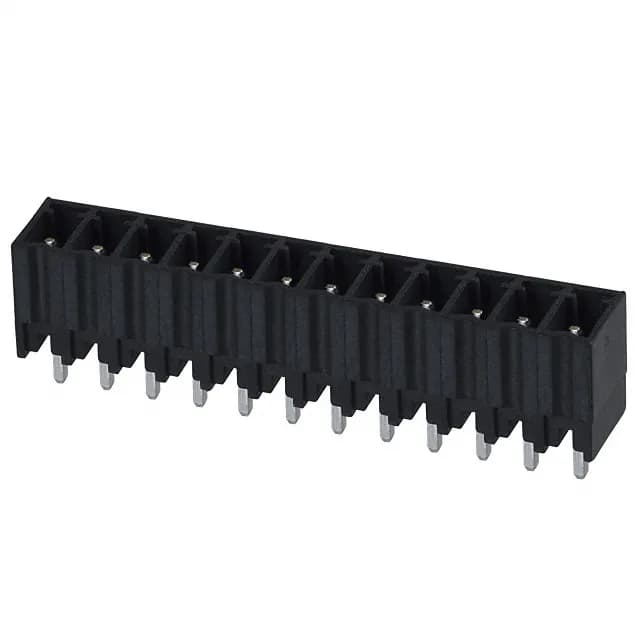

Molex Eurostyle 39353 header, order code 0393530012, 12 positions, single level, 0.138" (3.50mm) pitch, 300 V, tin-plated mating contacts, through-hole vertical, solder termination.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Eurostyle 39353 |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Operating temperature | 140°C |
| Color | Black |
| Contact material | Brass |
| Housing material | Polyamide (PA46), Nylon 4/6 |
| Insulation height | 0.360\" (9.14mm) |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.134\" (3.40mm) |
| Positions | 12 |
| Positions per level | 12 |
| Contact mating finish | Tin |
The 0393530012 is a 12-circuit shrouded header from Molex's Eurostyle 39353 series, rated 10 A per contact at 300 V with tin-plated mating surfaces. Through-hole vertical mounting with 0.134" (3.40mm) solder tails; the 0.360" (9.14mm) insulation height clears the board for wire entry in a single-level layout.
Molex lists the 0393530012 as Obsolete. A board spin is required for any functional replacement.
