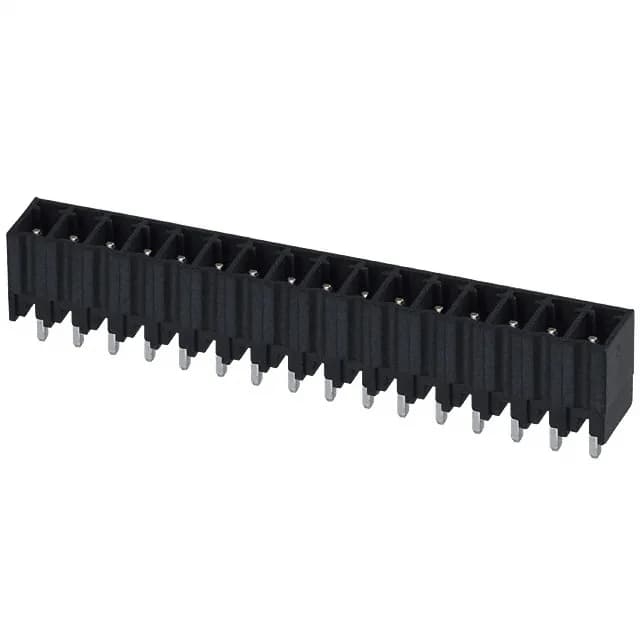

Molex 0393530016
MPN0393530016
Obsolete
$4.3400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Eurostyle 39353 |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Operating temperature | 140°C |
| Color | Black |
| Contact material | Brass |
| Housing material | Polyamide (PA46), Nylon 4/6 |
| Insulation height | 0.360\" (9.14mm) |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.134\" (3.40mm) |
| Positions | 16 |
| Positions per level | 16 |
| Contact mating finish | Tin |
