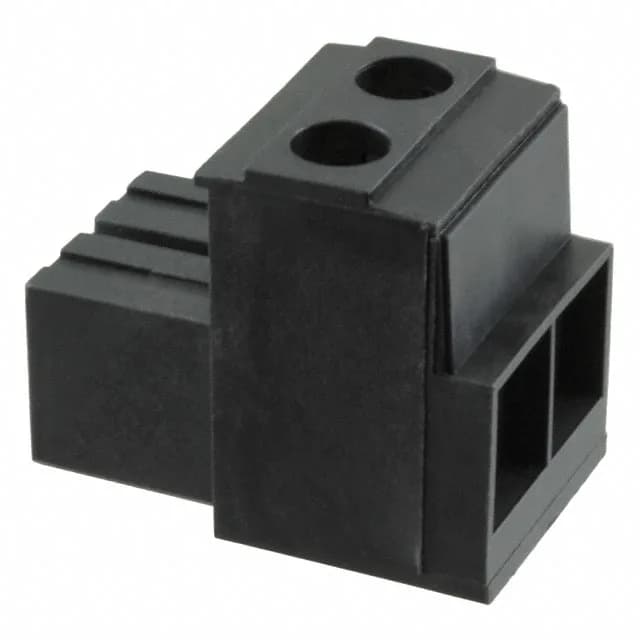

Molex 0394210002
MPN0394210002
Active
$11.8000Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | EuroMax 39421 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 600 V |
| Current - UL | 85 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 3-14 AWG |
| Operating temperature | 130°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polybutylene Terephthalate (PBT) |
| Insulation height | 1.311\" (33.30mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.472\" (12.00mm) |
| Features | Retention Latches (Non-Wire Side) |
| Package | Bulk |
| Screw size | M5 |
| Manufacturer | Molex |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
