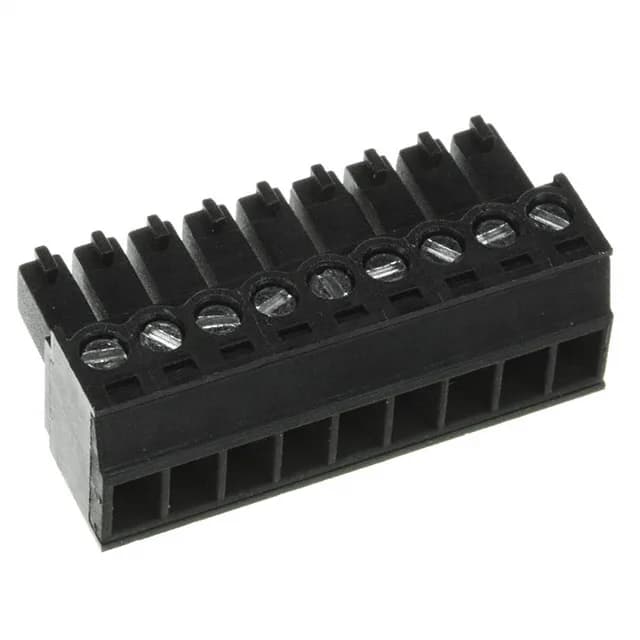

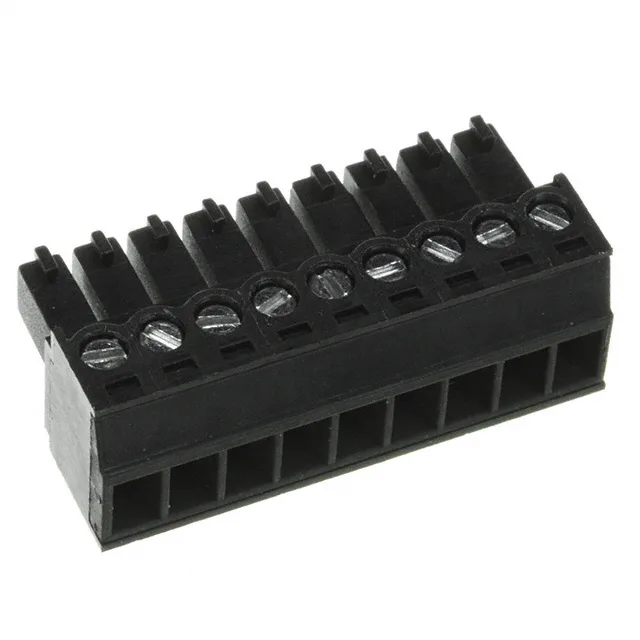

Molex Eurostyle ESE 39500 plug, order code 0395000009, 9 positions, single level, 0.138" (3.50mm) pitch, 8 A, 300 V, tin-plated phosphor bronze contacts, free-hanging in-line, screw rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle ESE 39500 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 8 A |
| Plug wire entry | 180° |
| Wire strip length | 6.5mm |
| Wire gauge or range - AWG | 16-30 AWG |
| Operating temperature | -40°C ~ 115°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Insulation height | 0.440\" (11.18mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Manufacturer | Molex |
| Torque - screw | 0.23 Nm (2.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 9 |
| Positions per level | 9 |
| Contact mating finish | Tin |
The 0395000009 is the 9-circuit member of Molex's Eurostyle ESE 39500 plug line, a free-hanging (in-line) female socket with a single level of positions. It accepts 16-30 AWG wire terminated via a screw-driven rising cage clamp (0.23 Nm torque) and carries a 6.5 mm strip length. The housing is black UL94 V-0 polyamide 6/6 with a 0.440" insulation height.
