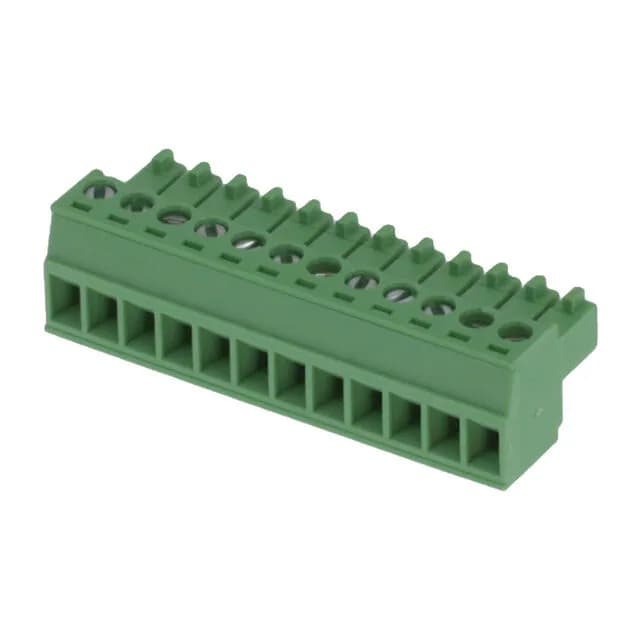

Molex Eurostyle ESE 39500 plug, order code 0395005012, 12 positions, single level, 0.138" (3.50mm) pitch, 8 A, 300 V, tin-plated mating finish, free hanging (in-line), screw - rising cage clamp termination, bulk packaging.
Molex 0395005012 Eurostyle ESE 39500 Plug, 12 Pos, 3.50mm
MPN0395005012
Active
Molex Eurostyle ESE 39500 plug, order code 0395005012, 12 positions, single level, 0.138" (3.50mm) pitch, 8 A, 300 V, tin-plated mating finish, free hanging (in-line), screw - rising cage clamp termination, bulk packaging.
$3.5300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle ESE 39500 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 8 A |
| Plug wire entry | 180° |
| Wire strip length | 6.5mm |
| Wire gauge or range - AWG | 16-30 AWG |
| Operating temperature | -40°C ~ 115°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.440\" (11.18mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Manufacturer | Molex |
| Torque - screw | 0.23 Nm (2.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 12 |
| Positions per level | 12 |
| Contact mating finish | Tin |
