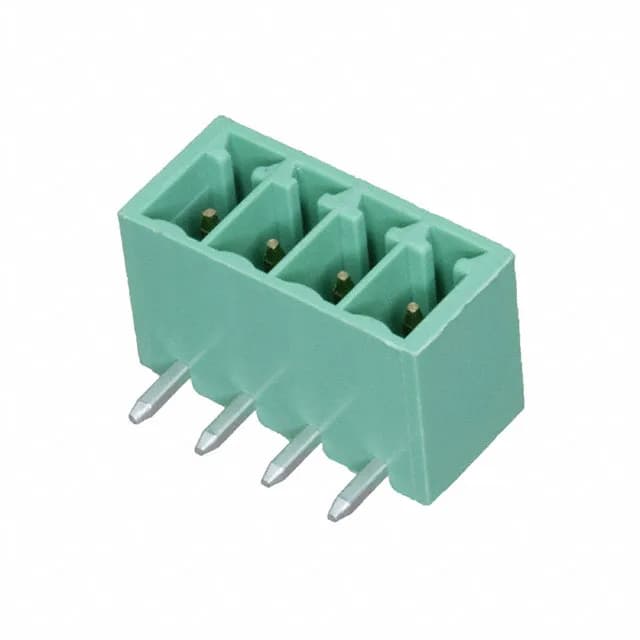

Molex Eurostyle ESE 39502 header, Male Pins, Shrouded (4 Side), order code 0395026504, 4 positions, 1 level, 0.138" (3.50mm) pitch, 8 A, 300 V, gold mating finish, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Eurostyle ESE 39502 |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 8 A |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Brass |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.270\" (6.86mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Manufacturer | Molex |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.140\" (3.56mm) |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Gold |
The 0395026504 is the 4-position member of Molex's Eurostyle ESE 39502 shrouded header line. It carries gold-plated mating contacts rated 8 A at 300 V and mounts through-hole right-angle with solder termination.
The 0395026504 is listed as a Header, Male Pins, Shrouded (4 Side) — the shroud protects the mating pins during handling and alignment.
