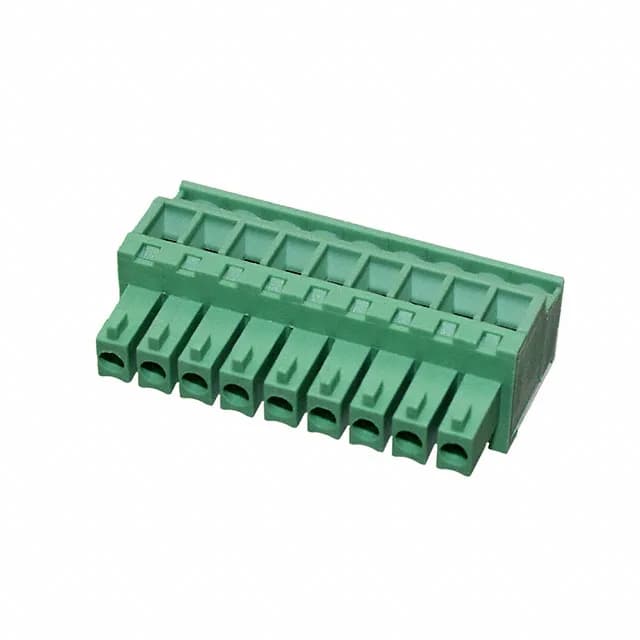

0395038009 Molex Eurostyle ESE 39503 Plug, 9-Position, 3.50mm Pitch, 8 A / 300 V
MPN0395038009
Active
Molex Eurostyle ESE 39503 plug, 9 positions single-level, 3.50 mm pitch, 8 A at 300 V UL rated, screw-rising cage clamp termination, free-hanging 90° wire entry, tin-plated phosphor bronze contacts, green housing, polyamide UL94 V-0, -40 to 115 °C, accepts 16-30 AWG, torque 0.23 Nm.
$3.1500Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle ESE 39503 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 8 A |
| Plug wire entry | 90° |
| Wire strip length | 6.5mm |
| Wire gauge or range - AWG | 16-30 AWG |
| Operating temperature | -40°C ~ 115°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.740\" (18.80mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Manufacturer | Molex |
| Torque - screw | 0.23 Nm (2.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 9 |
| Positions per level | 9 |
| Contact mating finish | Tin |
Frequently asked questions
What is the 0395038009's connector type and color?
The 0395038009 is a plug-type female socket terminal block in green housing, single-level, 9 positions, from the Molex Eurostyle ESE 39503 series.
