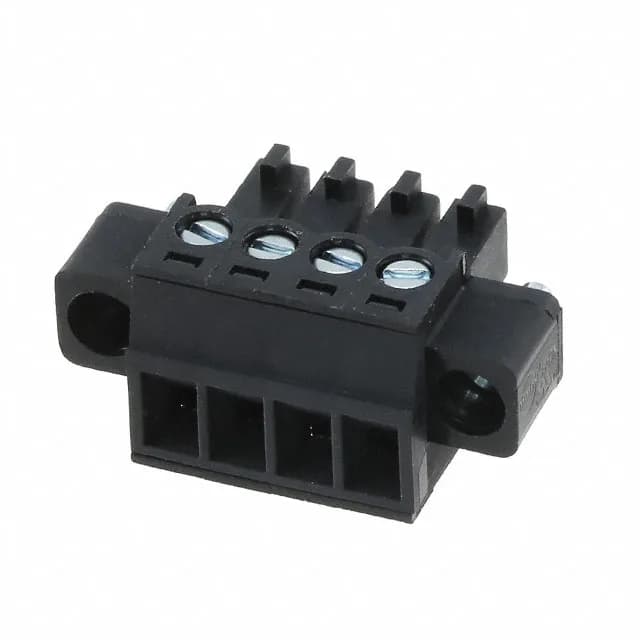

Molex Eurostyle ESE 39504 plug, order code 0395040004, 4 positions, single level, 0.138" (3.50mm) pitch, 8 A, 300 V, tin-plated phosphor bronze contacts, free-hanging, screw rising cage clamp termination.
Molex 0395040004 Eurostyle ESE 39504 Plug, 4-Pos 3.50mm
MPN0395040004
Active
Molex Eurostyle ESE 39504 plug, order code 0395040004, 4 positions, single level, 0.138" (3.50mm) pitch, 8 A, 300 V, tin-plated phosphor bronze contacts, free-hanging, screw rising cage clamp termination.
$1.3300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle ESE 39504 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 8 A |
| Plug wire entry | 180° |
| Wire strip length | 6.5mm |
| Wire gauge or range - AWG | 16-30 AWG |
| Operating temperature | -40°C ~ 115°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.437\" (11.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Features | Mating Flange |
| Package | Bulk |
| Manufacturer | Molex |
| Torque - screw | 0.23 Nm (2.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
Product details
Frequently asked questions
What is 0395040004's listed type and color?
The 0395040004 is listed as a Plug, Female Sockets type with a Black housing.
