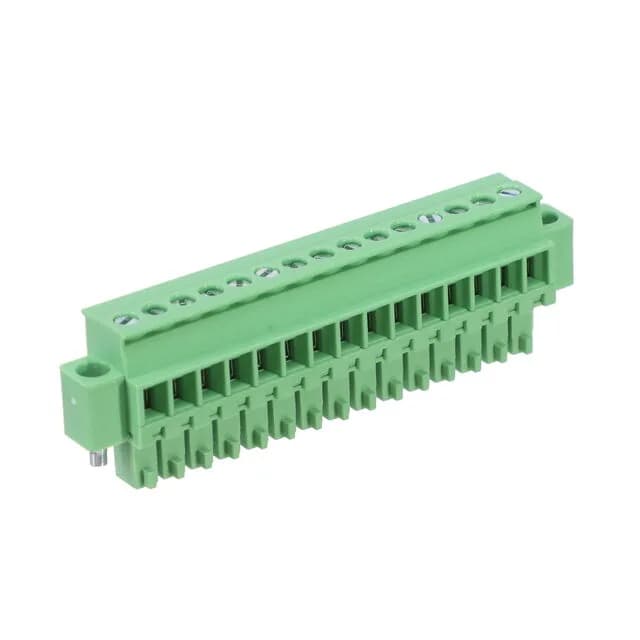

Molex Eurostyle ESE 39507 plug, order code 0395078015, 15 positions, single level, 0.138" (3.50mm) pitch, 8 A, 300 V, tin-plated phosphor bronze contacts, screw rising cage clamp termination, free-hanging (in-line) 90° wire entry, green PA66 housing.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle ESE 39507 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 8 A |
| Plug wire entry | 90° |
| Wire strip length | 6.5mm |
| Wire gauge or range - AWG | 16-30 AWG |
| Operating temperature | -40°C ~ 115°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Insulation height | 0.740\" (18.80mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Features | Mating Flange |
| Package | Bulk |
| Screw size | M2 |
| Manufacturer | Molex |
| Torque - screw | 0.23 Nm (2.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 15 |
| Positions per level | 15 |
| Contact mating finish | Tin |
The 0395078015 is the 15-circuit member of Molex's Eurostyle ESE 39507 plug line, a single-level screw-clamp connector for free-hanging termination. Rated 8 A per circuit at 300 V with tin-plated phosphor bronze contacts, the plug accepts 16-30 AWG wire and operates from -40°C to 115°C.
The 0395078015 is listed as a Plug, Female Sockets type with a green PA66 housing.
