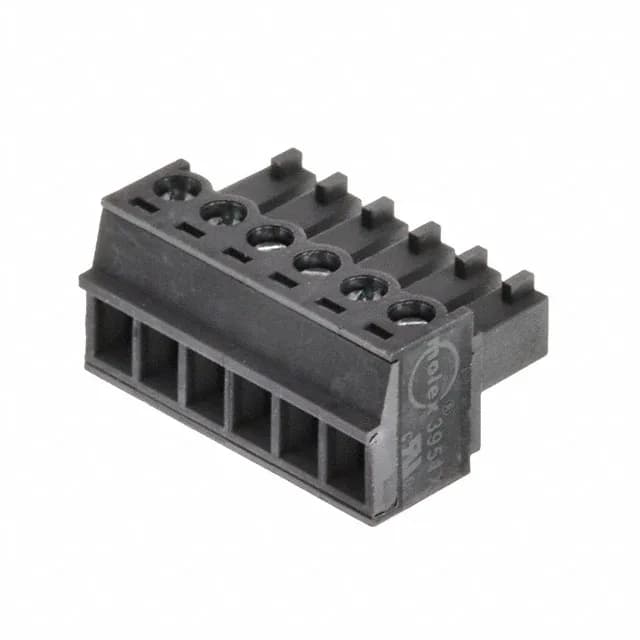

Molex Eurostyle ESE 39510 plug, order code 0395100006, 6 positions, single level, 0.150" (3.81mm) pitch, 8 A, 300 V, tin-plated mating contacts, free-hanging in-line, screw - rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle ESE 39510 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 8 A |
| Plug wire entry | 180° |
| Wire strip length | 6.5mm |
| Wire gauge or range - AWG | 16-30 AWG |
| Operating temperature | -40°C ~ 115°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Insulation height | 0.437\" (11.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Manufacturer | Molex |
| Torque - screw | 0.23 Nm (2.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
The 0395100006 is the 6-circuit member of Molex's Eurostyle ESE 39510 plug line, a free-hanging female socket with a single level of positions. It terminates via a screw - rising cage clamp rated 8 A at 300 V, accepting 16-30 AWG wire with a 6.5 mm strip length.
The operating temperature range is -40°C to 115°C.
