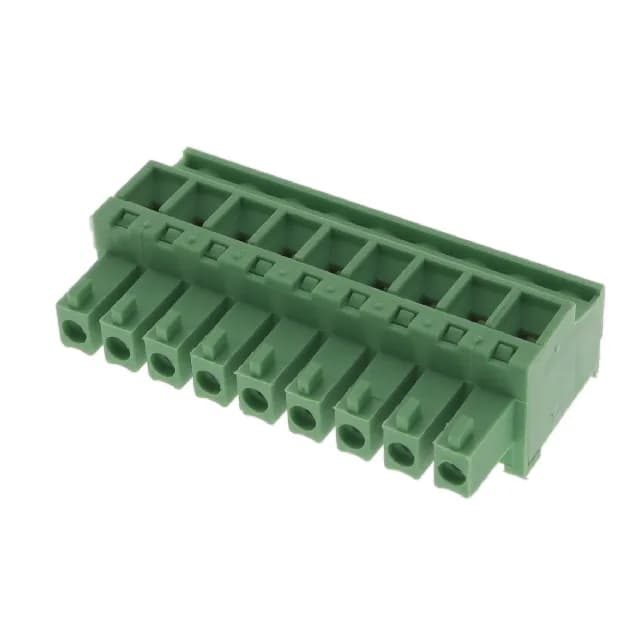

Molex Eurostyle ESE 39513 plug, order code 0395138009, 9 positions, single level, 0.150" (3.81mm) pitch, 8 A, 300 V, tin-plated mating contacts, free hanging (in-line), screw - rising cage clamp termination.
Molex 0395138009 Eurostyle ESE 39513 Plug, 9 Pos, 3.81mm
MPN0395138009
Active
Molex Eurostyle ESE 39513 plug, order code 0395138009, 9 positions, single level, 0.150" (3.81mm) pitch, 8 A, 300 V, tin-plated mating contacts, free hanging (in-line), screw - rising cage clamp termination.
$3.2100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle ESE 39513 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 8 A |
| Plug wire entry | 90° |
| Wire strip length | 6.5mm |
| Wire gauge or range - AWG | 16-30 AWG |
| Operating temperature | -40°C ~ 115°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.750\" (19.05mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Manufacturer | Molex |
| Torque - screw | 0.23 Nm (2.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 9 |
| Positions per level | 9 |
| Contact mating finish | Tin |
