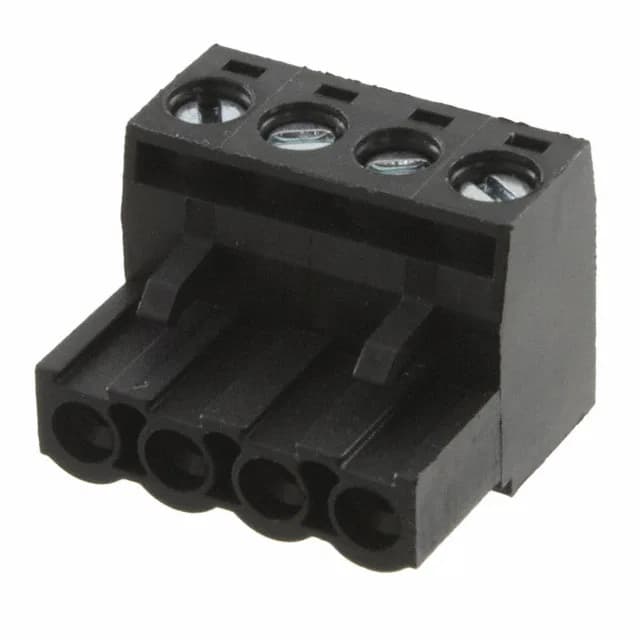

Molex 0395200004 Eurostyle ESE 39520 Plug 4-Pos 5mm 18A
Molex Eurostyle ESE 39520 plug, 4-position, 5.00 mm pitch, 18 A per circuit, 300 V UL, tin-plated phosphor bronze contacts, PA66 housing rated UL94 V-0, -40 to 115 °C operating, 12-30 AWG, free-hanging in-line mount, 180° wire entry, screw rising cage clamp termination.
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle ESE 39520 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 18 A |
| Plug wire entry | 180° |
| Wire strip length | 6.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Operating temperature | -40°C ~ 115°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.591\" (15.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Features | Retention Latches (Non-Wire Side) |
| Package | Bulk |
| Manufacturer | Molex |
| Torque - screw | 0.56 Nm (5.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
Frequently asked questions
Where can I buy 0395200004 and what is the lead time?
The 0395200004 is sourced to order against your BOM quantity through independent distribution. Availability and current pricing are confirmed at quote time; submit an RFQ with your required quantity and target date to receive a quote.
What is the closest pin-compatible alternative to 0395200004 in this series?
No official cross-reference or substitute part is listed for the 0395200004 — if the 4-position count or 180° wire entry does not fit the harness layout, check the other position counts within the ESE 39520 series to find the nearest member that matches the circuit count and entry orientation required.
What is the color of the 0395200004?
The 0395200004 is listed in Black.
