12-position shrouded header, 5.00 mm pitch
The 0395226012 is the 12-circuit member of the Eurostyle ESE 39522 shrouded header line, through-hole right-angle, with tin-plated brass contacts rated 15 A at 300 V.

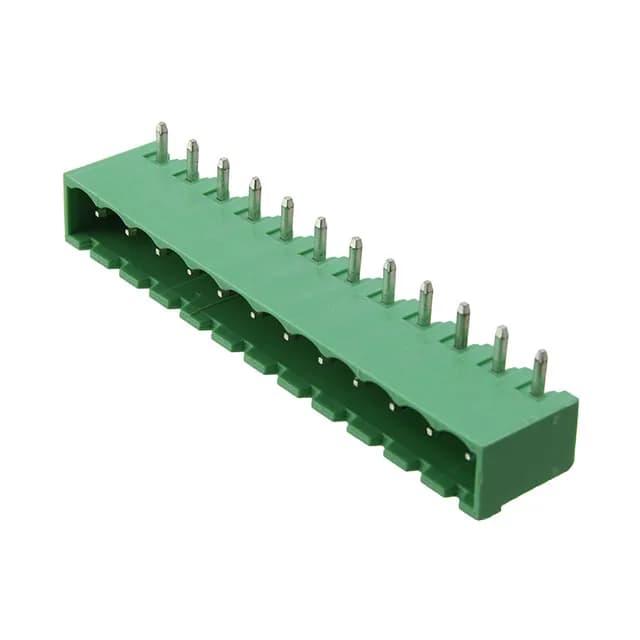

0395226012 Eurostyle ESE 39522 Header, 12 Pos, 5.00mm
MPN0395226012
Active
Eurostyle ESE 39522 header, order code 0395226012, 12 positions, single level, 5.00 mm pitch, 15 A, 300 V, through-hole right-angle, solder termination, tin-plated brass contacts.
$1.6522Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Eurostyle ESE 39522 |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Brass |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.330\" (8.38mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Manufacturer | Molex |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.150\" (3.81mm) |
| Positions | 12 |
| Positions per level | 12 |
| Contact mating finish | Tin |
