Molex 0395237009 — Pin Headers, Sockets & Housings

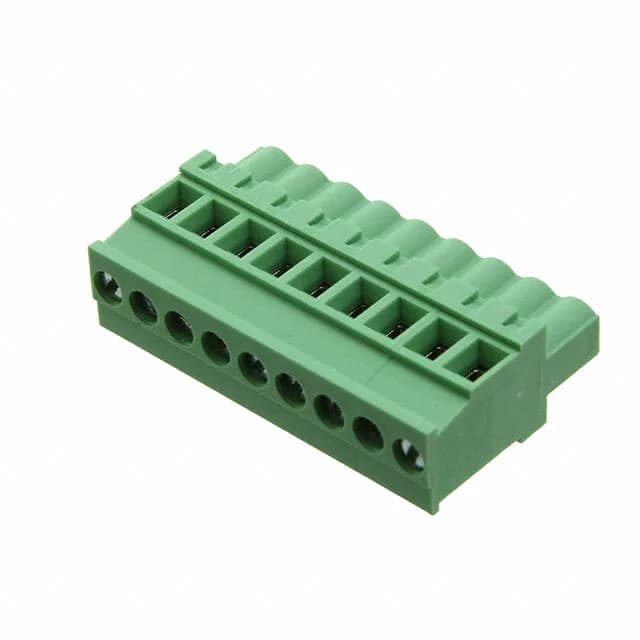

Molex 0395237009 Eurostyle ESE 39523 Plug, 9 Pos, 5.00mm

MPN0395237009
Active

Molex Eurostyle ESE 39523 plug, order code 0395237009, 9 positions, single level, 5.00 mm pitch, 15 A, 300 V, tin-plated phosphor bronze contacts, free-hanging, screw - rising cage clamp termination.

$5.6400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

0395237009 key specifications
ParameterValue
TypePlug, Female Sockets
SeriesEurostyle ESE 39523
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL15 A
Plug wire entry270°
Wire strip length5mm
Wire gauge or range - AWG12-26 AWG
Operating temperature-40°C ~ 105°C
ColorGreen
Contact materialPhosphor Bronze
Housing materialPolyamide (PA66), Nylon 6/6

All specifications

0395237009 additional specifications
ParameterValue
Insulation height1.020\" (25.91mm)
Material flammability ratingUL94 V-0
Pitch0.197\" (5.00mm)
PackageBulk
FeaturesRetention Latches (Non-Wire Side)
Torque - screw0.56 Nm (5.0 Lb-In)
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions9
Positions per level9
Contact mating finishTin

Product details

9-circuit plug, 5.00 mm pitch, screw termination

The 0395237009 is the 9-position member of Molex's Eurostyle ESE 39523 plug family, a free-hanging female socket strip at 5.00 mm pitch.

Wire entry and retention latches

The plug wire entry is angled at 270°, which routes the cable exit parallel to the mating face — useful when the wire bundle needs to run along the board or panel after the connection is made. Retention latches on the non-wire side hold the plug to the mating header; the insulation height of 1.020" (25.91 mm) gives clearance for the latch mechanism and the screw access.

Frequently asked questions

Who supplies 0395237009 and how is it quoted for volume purchases?

Molex manufactures the 0395237009 under the Eurostyle ESE 39523 series.
