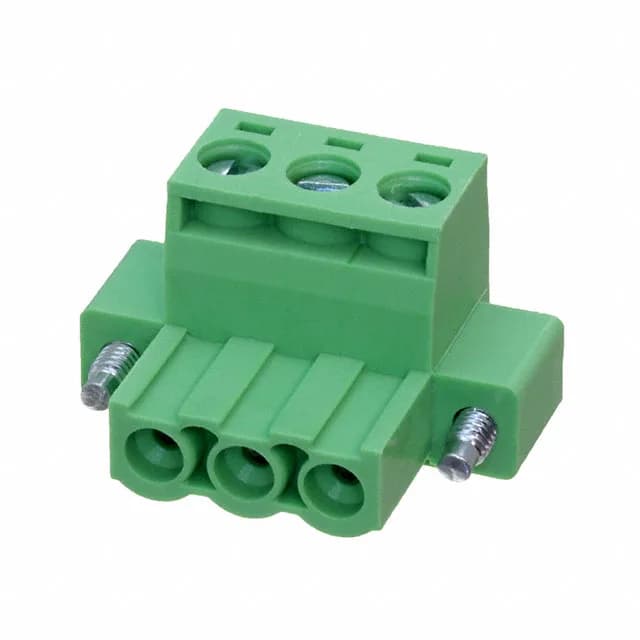

Molex 0395245003
MPN0395245003
Active
$2.5500Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle ESE 39524 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 18 A |
| Plug wire entry | 180° |
| Wire strip length | 6.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Operating temperature | -40°C ~ 115°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.591\" (15.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Features | Mating Flange |
| Package | Bulk |
| Manufacturer | Molex |
| Torque - screw | 0.56 Nm (5.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
