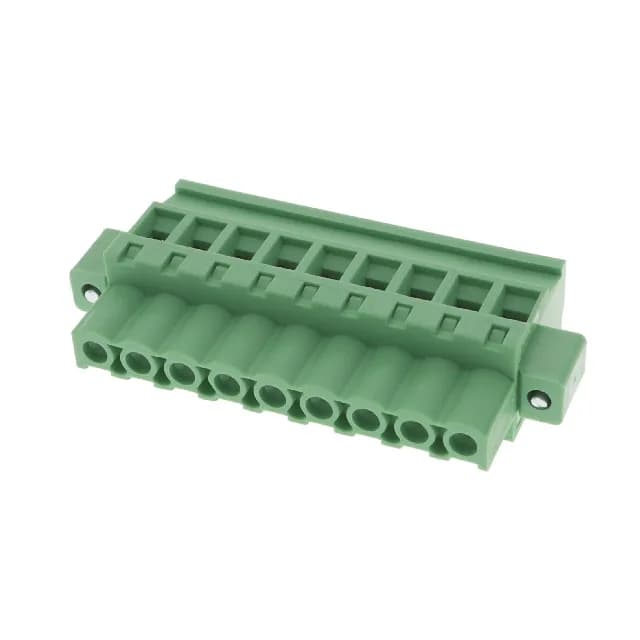

Molex Eurostyle ESE 39527 plug, order code 0395277009, 9 positions, 0.197" (5.00mm) pitch, tin-plated copper alloy female sockets, 10 A at 300 V UL, free-hanging in-line mount, screw rising cage clamp termination, green PA66 nylon housing.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle ESE 39527 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Plug wire entry | 270° |
| Wire strip length | 5mm |
| Wire gauge or range - AWG | 12-26 AWG |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Insulation height | 1.020\" (25.91mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Features | Mating Flange, Retention Latches (Non-Wire Side) |
| Package | Bulk |
| Screw size | M3 |
| Manufacturer | Molex |
| Torque - screw | 0.34 Nm (3.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 9 |
| Positions per level | 9 |
| Contact mating finish | Tin |
The 0395277009 is the 9-position member of Molex's Eurostyle ESE 39527 plug line, a free-hanging in-line female socket connector with screw rising cage clamp termination. The green PA66 nylon housing carries a UL94 V-0 flammability rating and operates from -40 to 105 °C. Tin-plated copper alloy contacts are rated 10 A at 300 V UL.
The housing material is PA66 nylon rated UL94 V-0. The operating temperature range is -40 to 105 °C. RoHS and REACH compliance documentation is typically available from Molex; contact the supplier for specific certificates.
